3000 Series Door Closer

Roll over image to zoom in

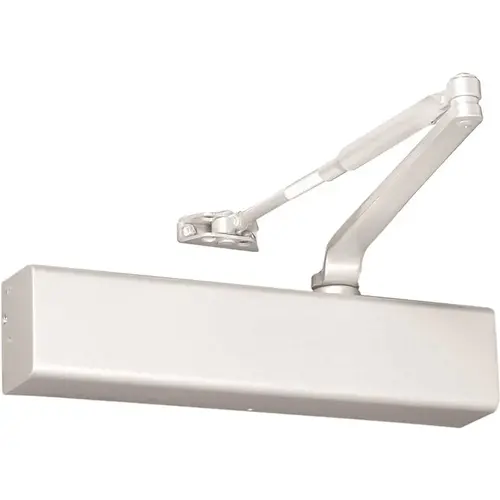

Yale Commercial 3301 689 3000 Series Door Closer

Item #: 3301 689 by Yale

UPC #: 840067681961

See reviews See reviews

In Stock $400.26 /each

SAVE UP TO 40.03

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

  • Cast aluminum body
  • Adjustable spring sizes 1 through 6
  • Tri-packed (regular arm, top jamb and parallel arm mounting)
  • Non-handed
  • Staked valves
  • Rack & pinion design
  • 1-1/4" (32mm) diameter piston
  • 5/8" (16mm) diameter pinion journals
  • Separate and independent, latch, sweep and backcheck intensity valves
  • 2-1/8" (54mm) projection (standard covers)

Finish

Aluminum Painted

Type

Surface

Color

Aluminum Painted

Color Code

689/US28

Mounting Style

Tri Mount

Hold Open

Without Hold Open

Closer Size

Adj. 1 to 6

Mounting Location

Push or Pull Side

Package Qty

1

Grade

ANSI/BHMA Grade 1

Spring Size

1-6

Function

Tri-Packed Non-Hold Open Arm

Mount

Push or Pull Side

Finish Description

Aluminum Painted

Product Type

Door Closer/Holder/Stop

UNSPSC

31162800

ADA Compliant

YES

Finish Family

Aluminum

Product Material

Cast Aluminum

Closer Cover

Slim Plastic Cover

Standards

Grade 1 - ANSI/BHMA

Closer Arm Extension

2-1/8 Inch

Closer Arm Type

Regular Arm

Closer Fluid Temperature Range

Very High to as Low as -40°F

Closer Fluid

Closer Fluid

Closer Piston Diameter

1-1/4 Inch

Closer Pinion Diameter

5/8 Inch

Function Family

Non Hold Open Door Closer

Mounting Hole Size

3/4" x 12"

Features

Exceeds 25 Million Cycles; Tri-Packed; Staked Valves; Rack and Pinion Design

Application

Commercial

Hand

Non-Handed

Handing

Non-Handed

Warranty

30 Year Limited Warranty

Mounting Type

Push or Pull Side

Door Thickness

1-3/4 inch

Door Size

42" (Interior); 36" (Exterior)

Maximum Door Opening

180°

Manufacturer Parent

Assa Abloy

Closer Hold-Open

false

Sub-Series

DC_Surface Mounted Closers_yale_commercial_7

3000 SeriesArchitectural Door Closer

Yale 3000 Series Architectural Door Closers offer the perfect combination of reliability, aesthetics and durability in today's market. With features such as staked valves, self-drilling/self-tapping screws, rack and pinion design and precise valve adjustment, and a complete range of arm and cover options, the Yale 3000 Series can meet virtually any application challenge. Offering sophisticated door control for any upscale commercial application, Yale Works for You℠.

Standard Features:
  • Exceeds 25 million cycles
  • Cast aluminum body
  • Adjustable spring sizes 1 through 6
  • Tri-packed
  • (regular arm, top jamb and parallel arm mounting)
  • Non-handed
  • Staked valves
  • Rack & pinion design
  • 1-1/4" (32mm) diameter piston
  • 5/8" (16mm) diameter pinion journals
  • 2-1/8" (54mm) projection
  • (standard covers)
  • All standard arm applications (with slim, full or metal covers) allow doors to swing 180 degrees, conditions permitting
Benefits: Slim profile:
  • Seamless design blends into any building's aesthetic
Strong & durable:
  • ANSI/BHMA Grade 1 certified for long life and reliability
Features: Aluminum Alloy Housing:
  • Closer bodies are constructed of a special aluminum alloy, carefully selected to accommodate interactive steel components and operating conditions.
Rack & Pinion Operation:
  • Provides a smooth constant control of the door through its full opening and closing cycle. 180° door swing can be achieved when door, frame, hardware and arm function do not interfere.
Non-handed:
  • With few exceptions all series and series 3301/3501 door closers are non-handed and can be installed on either right or left hand swing doors. Pinion shaft extends vertically through the closer body in both directions. Some options, as noted on page 5, will require that the hand of the closer be specified.
Sweep Speed Control Valve:
  • Allows adjustment of door speed from the door's full open position down to approximately 10° from the closed position.
Latch Speed Control Valve:
  • Allows adjustment of door speed from approximately 10° down to the door’s fully closed position.
Closer Fluid:
  • All door closers are supplied with a temperature stable, multi-viscosity fluid. This fluid will permit the door closer to perform within a wide temperature range: from very high to as low as -40°F.
Tri-Packed:
  • 3301/3501 come with screws, brackets and soffit plates to allow for regular, top jamb, and parallel arm installations.
Adjustable Backcheck Valve:
  • Provides control of the door in the opening cycle, beginning at approximately 75° of door opening. It cushions the door opening when the door is forcibly opened beyond its pre-adjusted limits.
Standard Molded Covers:
  • Molded of high-impact U.L. listed material. Standard covers are non-handed for all applications. See page 5 for optional covers.
Warranty:
  • Limited 25-year warranty for defects and life of the building on the aluminum housing.
Finishes: 600*:
  • Primed for Painting
605^:
  • Bright Brass, Clear Coated
606^:
  • Satin Brass, Clear Coated
611^:
  • Bright Bronze, Clear Coated
612^:
  • Satin Bronze, Clear Coated
613E^:
  • Dark Oxidized Satin Bronze - equivalent
625^:
  • Bright Chrome Plated
626^:
  • Satin Chrome Plated
689:
  • Aluminim Painted
690:
  • Dark Bronze Painted
691:
  • Light Bronze Painted
693:
  • Black Painted
694:
  • Medium Bronze Painted
696:
  • Satin Brass Painted
BSP:
  • Black Suede Powder Coat
WSP:
  • White Suede Powder Coat
Plated Finishes*: Bright Brass:
  • Specify Designation (ANSI/BHMA) - 605
  • Metal Covers Only - Yes
  • Old Designation - US3
Satin Brass:
  • Specify Designation (ANSI/BHMA) - 605
  • Metal Covers Only - Yes
  • Old Designation - US4
Bright Bronze:
  • Specify Designation (ANSI/BHMA) - 611
  • Metal Covers Only - Yes
  • Old Designation - US9
Satin Bronze:
  • Specify Designation (ANSI/BHMA) - 612
  • Metal Covers Only - Yes
  • Old Designation - US10
Bright Chrome:
  • Specify Designation (ANSI/BHMA) - 625
  • Metal Covers Only - Yes
  • Old Designation - US26
Satin Chrome:
  • Specify Designation (ANSI/BHMA) - 605
  • Metal Covers Only - Yes
  • Old Designation - US26D
  • *600 is a special rust-inhibiting prime coat. Closers can be ordered prime coat only (specify closer x 600). An additional charge applies if finish coat is required over prime coat (ex: 3501 x 600 x 689).
  • ^ Available on arms only.
  • When a plated finish is ordered, arm and cover will be plated unless "cover only" is specified. 3100/3300 - available with plated arm only.
