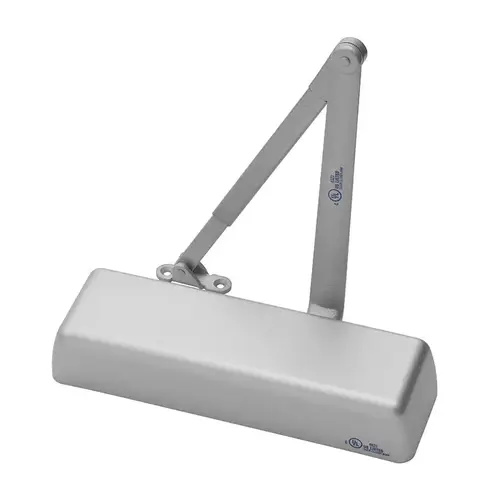

Yale Commercial 2701 689 2700 Door Closer Damper: 225 lb Load Capacity, 48" Door Width, 13" Closer Body Length Aluminum Painted
Item #: 2701 689 by Yale
Brand: Yale Commercial
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Adjustable Spring Sizes from 1 to 6
- Certified for ANSI/BHMA A156.4 Grade 1
- UL and cUL listed. This includes compliance to UL10C.
- Meets requirements for Americans with Disabilities Act (ADA) and ANSI/BHMA A117.1
- Non Handed
- 10-year limited warranty
- Tri Packed with Regular, Parallel, and Top Jam Mounting
- Aluminum
- Tri-packed: regular, parallel or top jamb mounting
- Sleeve Nuts Furnished Standard with All Models
- Full Plastic Cover
Product Type
Door Closer/Holder/Stop
Finish Description
Aluminum Painted
Mount
Parallel Arm (Push Side)
Function
Tri-Packed Non-Hold Open Arm
Spring Size
1-6
Grade
ANSI/BHMA Grade 1
Package Qty
1
Color Code
689/US28
Color
Aluminum Painted
Series
2700 Series
Finish
Aluminum Painted
Horizontal Mounting Holes
12
Vertical Mounting Holes
3/4
Closer Body Length
13.0000
Load Capacity
225 lb
Door Width
48
Includes
Sleeve Nut
Arm Type
Regular
Damper Type
Door Closer
Operation Type
Manual
Hand Orientation
Non-Handed
Housing Material
Aluminum
Product Service Code
5340
Projection (Decimal Inch)
2.1250
UNSPSC Code
31162800
Vendor Drop Ship
N
Housing Length (Decimal Inch)
13.0000
Housing Depth (Decimal Inch)
2.8750
ProductType
Manual
Aluminium Bottle Contents
Swinging
Warranty
10 year limited warranty
Application
Commercial
Hand
Non-Handed
Handing
Non-Handed
Mounting Type
Parallel Arm (Push Side)
ADA Compliant
YES
Finish Family
Aluminum
Product Material
Aluminum
Closer Cover
Full Plastic Cover
Standards
Grade 1 - ANSI/BHMA A156.4; UL and cUL Listed; UL10C; ANSI/BHMA A117.1
Closer Arm Type
Tri-Pack Arm (Non-Handed)
Function Family
Non Hold Open Door Closer
Fastener Type
Self Drilling Screws
Features
Rugged Construction; Adjustments for Backcheck; Closing and Latch Speed; Rack and Pinion Operation and a Variety of Arm Options
Door Size
42" (Interior); 36" (Exterior)
Maximum Door Opening
180°
Door Thickness
1-3/4 inch
Manufacturer Parent
Assa Abloy
Closer Hold-Open
false
Sub-Series
DC_Surface Mounted Closers_yale_commercial_6
Dimension
2-7/8" x 13" x 2-1/8" Projection (with cover)
Material
Aluminum
Mounting Style
Regular, Parallel, or Top Jamb Mounting
Hold Open
No
Manufacturer Warranty
Limited 10 Year Warranty
UL Listing Type
UL / cUL / UL10C Listed
Closer Type
Surface Mounted Closer
Hazardous Material
No
Finish code
689
No of inners
1
Mounting Hole Pattern
3/4" x 12" Rectangular Mounting
Open
Non-Hold
Alternate Part Number-1
252707
Product Overview
2700 SeriesArchitectural Door Closers
Yale® 2700 series architectural door closers are ideal for commercial applications where ease of use, installation and aesthetics are required at an economical price. The 2700 series features rugged construction, adjustments for backcheck, closing and latch speed, rack and pinion operation and a variety of arm options.
Features:- Adjustable spring size 1-6
- Non-handed
- Aluminum
- Tri-packed: regular, parallel or top jamb mounting
- Full plastic cover
- Hold open and heavy-duty arms available
- Sleeve nuts furnished standar with all models
- Backcheck
- Closing speed
- Latching speed
- Delayed action; specify 2701DL
- Certified for ANSI/BHMA A156.4 Grade 1
- UL and cUL listed. This includes compliance to UL10C
- Meets the reqirements for Americans with Disabilities Act (ADA) and ANSI/BHMA A117.1
- 10-year limited warranty
