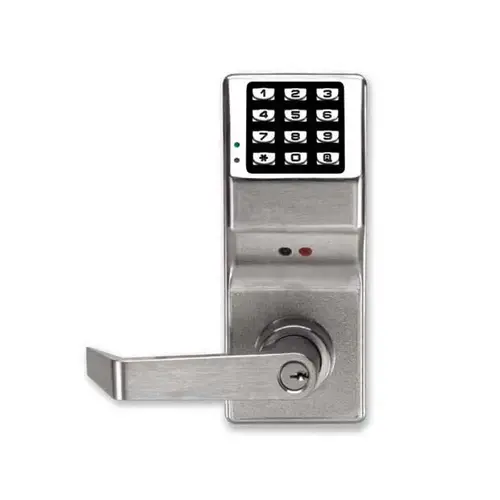

Alarm Lock DL4100 US26D 4100 SERIES PUSH BUTTON DIGITAL KEYPAD DOOR LOCK WITH PRIVACY FUNCTION SC1 KEYWAY SATIN CHROME
Item #: DL4100 US26D by Alarm Lock
UPC #: 400654053153
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Easy to install: Retrofits most cylindrical locksets and digital locks
- Interior LED on the inside housing indicates when the privacy session is active
- Rest assured knowing that you are safe within the room, while locking out unauthorized users.
- Multi-level user codes & one-time service codes
- Privacy feature will lock out all users for programmed amount of time. Residency feature-allows exiting without having to lock the door
- 2000 PIN or PIN/Prox user codes; 500 scheduled events; 40,000 audit trail
- Fingertip programmable at vandalproof all-metal keypad
- Privacy Pushbutton – Push button on inside door to temporarily lock-out keypad codes (programmable option)
- ADA compliant lever
- Occupied and multi-status LED indicator, flashes when privacy session is active
- Long-life battery operation - 100,000 cycles typical
- Self-stick instructional signage, supplied (bilingual)
- Lever features clutch mechanism for ADA and longer life
- Keypad or PC programming/reporting
- Right- or left-hand, classroom or deadbolt function models
- Programmable relay functions
- Supports 2000 3-6 digit PIN codesMasterManagementSupervisorBasic usersOne-time service
- 1-3/8” mortise cylinder & ASA strike, matching function supplied, only with 4500 Series
- 5AA battery-pak operated; 60,000 cycles, typical
- Weatherproof -31° to +151°F (-35° to +66°C)
- UL Listed, BHMA Grade 1 lockset with 3hr. fire rated latch
- 3 Architectural finishes (US3 polished brass, 26D satin chrome, 10B duronodic)
- 40,000 event audit trail and 500 scheduled events
- Fits 1.625" - 1.875" door thickness
- Uses 5AA off-the-shelf batteries with low-battery alert
- 1.125" x 2.75" T strike and 1.25" x 4.875" ASA strike included
- Includes 6-pin solid brass standard cylinder with Schlage SC1 keyway cylinder or upgrade to interchangeable core prep
- Standard interchangeable core prep accepts 6 & 7 pin cylinders from Best, Falcon, Arrow, KSP, Medeco Keymark and Kaba Peaks
- Dimensions: Outside housing: 8" H x 3.25" W x 1.875" D, Inside housing: 8.25" H x 3.25" W x 1.75" D
- Vandalproof All-Metal Keypad
- Non-Handed
Finish
Satin Chrome
Function
Double Cylinder
Series
DL Series
Design
Digital Keypad
Strike
1-1/8" x 2-3/4" T-Strike, 1-1/4" x 4-7/8" ASA Strike
Backset
2-3/4", 2-3/8"
Approved for Commercial Use
Yes
Theme
Modern
Power Source
Battery
UL Listed
Yes
Product Class
Commercial
Configuration
Electronic
Door Thickness
1-5/8 In. to 1-7/8 In.
ADA
Yes
ANSI Certification
A115
Cylinder
6 Pin Schlage C
Fire Rated
3 Hours {A}
Lit Keypad
No
Number of Codes
2000
Panic Proof
Yes
Remote Access
No
Smartphone Enabled
No
auto-lock capable
Yes
input type
Keypad
maximum users
2000
temporary access
Yes
Handle Width
3.25
Handle Projection
1.75
Package Height
7.125"
Package Length
9.25"
Package Volume
576.6796875
Package Width
8.75"
Number of users
2000
Keypad Type
Electronic
Latch Backset Dimension
2-3/4 In.
Lock Platform
Cylindrical Lock
Package Qty
1
Programmer
Optional
Reader Technology
Keypad Only
Software
Optional
Special Marks
Fire rated 3 Hours {A}
Strike Type
T-Standard and ASA
Base Material
Brass or Bronze
Grade
Grade 1
Power
Battery Pack
Color Code
626/US26D
Cylinder Type
Conventional Cylinder
Warranty
2 Years
Pack Size
1
Backset size (in.)
2-3/4
Door Handing
Universal/Reversible
General Material
Zinc
Hardware Finish Family
Chrome
Maximum User Codes
2000
Required Battery Type
AA
Security/ANSI Grade
ANSI Grade 1 (Best)
UNSPSC
46171500
Product Type
Digital Lever Lock
Application
School; Campus Security
Hand
Non-Handed
Handing
Non-Handed
Operating Temperature
-31 to 151°F
Keyway
Schlage C
Latch Throw
1/2 Inch
Finish Description
Satin Chrome
ADA Compliant
YES
Finish Family
Satin Chrome
Included Components
(5) AA Alkaline Batteries
Strike Size
1-1/8" x 2-3/4"; 1-1/4" x 4-7/8"
Standards
BHMA Certified; UL Listed; FCC Certified
Function Description
Authorized Digital Code or Prox Technology ID Allows Lever to Retract Latch. Inside Lever is Always in Passage Mode and Permits Instant Egress; Push Button on Inside Door to Temporarily Lock-Out Keypad Codes
Function Family
Electronic Digital Lock
Features
Weatherproof; Standard ANSI A115 Series Prep; 12-Button Vandal-Proof Metal Keypad; 2000 User Codes; 40000 Audit Trail; 500 Scheduled Events; Battery 60000 Cycles; Programmable Relay; Multi-Status LED Indicator; Self-Stick Instructional Signage
Manufacturer Parent
Napco Security Technologies
Sub-Series
DL4100-26D
Use With
Electric Lockset
Material
Zinc Alloy
Manufacturer Warranty
Limited 2 Year Warranty
UL Listing Type
UL10C
Power Supply
5 AA Batteries
Door Range
1-5/8" to 1-7/8"
Hazardous Material
No
Strike Dimension
1-1/8" x 2-3/4" T-Strike, 1-1/4" x 4-7/8" ASA Strike
Cross Bore Size
2-1/8" Bore with additional through-bolt holes
Finish code
US26D
Latch Faceplate Dimension
1-1/8" x 2-1/4"
Chassis Type
Cylindrical Chassis
Lever Knob Design
Straight Lever
No of inners
1
Product Overview
Privacy features: After entering with a PIN pass code the user pushes the privacy button on the back of the lock (inner door)
- The lock will now not open from the front entry side, until the user exits (door is reopened from the inside), or optional, the privacy session "times-out" following a preset duration
- During any privacy-session, the red LED on the outer, key-pad side of the door will flash to indicate that the room is occupied
- When exiting the room, the occupant simply leaves normally
- As an added safeguard, this exit sequence, triggered by the rotation of the inside handle will also enable a 3 second delay, before it will accept an additional signal from the privacy button (eliminating inadvertent privacy-locking)
