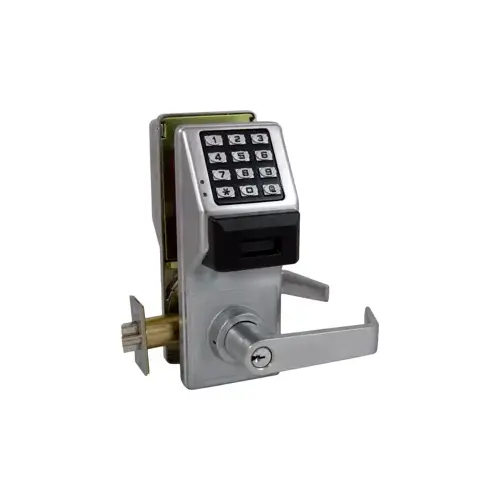

PDL3000 Series Trilogy T3 Proximity Cylindrical Audit Trail Digital Lock, Satin Chrome

Roll over image to zoom in

Alarm Lock PDL3000 US26DClick To Copy PDL3000 Series Trilogy T3 Proximity Cylindrical Audit Trail Digital Lock, Satin Chrome

Item #: PDL3000 US26D by Alarm Lock

UPC #: 785026092825

See reviewsSee reviews
In Stock

$1,384.60

/each
SAVE UP TO 138.46

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 269 units available
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Features
  • Retrofits Most Cylindrical Locksets and Digital Locks
  • Save all the downtime and 1/2 the cost of hardwired systems
  • Provide access for up to 2000 users, with prox ID-cards or 3 to 6 digit codes including:
  • Multi-Level User Codes and One-Time Service Codes
  • Free Passage, Group or Total Lock-Out Codes
  • Master, manager, supervisor and basic user. Users are individually programmed to use a card only, code only, or, for the highest security, both card and code.
  • 60,000 Cycles Typical Battery Life
  • Built-in HID Prox reader for entry with HID125KZ prox ID cards and keyfob credentials
  • Non-Handed
  • Grade 1 BHMA Certified durability and rugged clutch mechanism ensure long dependable life
  • Weatherproof performance for indoor and outdoor applications, wide operating temperature range of -31°F to +151°F (-35°C to +66°C)
  • Electronic master key system with access customized to each user’s hours - Give each user access to common areas and/or their individual area(s) and do so defined by the actual times they are permitted entry there.
  • Tap and Add batch ID card enrollment mode at lock or download from a PC
  • 40,000 event audit trail; 500 scheduled events
  • PC programming/reporting

Design

Proximity Keypad

Series

PDL Series

Function

Digital Lock

Finish

Satin Chrome

auto-lock capable

Yes

UL Listed

Yes

Product Class

Commercial

Remote Access

No

Usage Monitoring

Yes

maximum users

2000

Motorized Deadbolt

No

temporary access

Yes

BHMA Certification

Grade 1

Theme

Modern

Handle Style

Lever

Manufacturer Warranty

2 Year, 2 Year Limited

Power Source

Battery

Panic Proof

Yes

Fire Rated

3 Hours {A}

ADA

Yes

input type

Keypad

Width

3.25

Handle Material

Metal

Lit Keypad

No

Cylinder

6 Pin Schlage C

Approved for Commercial Use

Yes

Configuration

Electronic

Backset

2-3/4 Inch

Smartphone Enabled

No

ANSI Certification

A115

Projection

1.75

Door Thickness

1-5/8 to 1-7/8 Inch

Height

8

Number of Codes

2000

Strike

1-1/8" x 2-3/4" T-Strike, 1-1/4" x 4-7/8" ASA Strike

Material

Zinc

Handing

Non-Handed

ANSI Approved

Yes

Cross Bore

2-1/8"

Cylinder Included

Yes

Handle Projection

2.5625

Handle Length

4.75

Handle Width

3.25

Package Height

7.125"

Package Length

9.25"

Package Volume

576.6796875

Package Width

8.75"

Number of users

300

Keypad Type

Electronic

Latch Backset Dimension

2-3/4 In.

Lock Platform

Cylindrical Lock

Package Qty

1

Programmer

Optional

Reader Technology

125kHz Proximity with Keypad

Software

Optional

Special Marks

Fire rated 3 Hours {A}

Strike Type

ASA; T Strike

Base Material

Brass or Bronze

Grade

ANSI/BHMA Grade 1

Power

Battery Pack

Color Code

626/US26D

Cylinder Type

Conventional

Warranty

2 Year

Pack Size

1

Backset size (in.)

2-3/4

Certifications and Listings

UL Listed

Door Handing

Universal/Reversible

General Material

Zinc

Hardware Finish Family

Chrome

Maximum User Codes

2000

Required Battery Type

AA

Security/ANSI Grade

ANSI Grade 1 (Best)

Lock Type

Keyed Entry

Keyway

Schlage C

Finish Description

Satin Chrome

Keyblank Grouping

SCHL-C-6-1

Product Type

Electronic Cylindrical Lock

Keying Charges

CCAM

UNSPSC

46171500

Hand

Non-Handed

Operating Temperature

-31 to 151°F

Latch Throw

1/2 Inch

ADA Compliant

YES

Finish Family

Satin Chrome

Included Components

(5) AA Alkaline Batteries

Strike Size

1-1/8" x 2-3/4"; 1-1/4" x 4-7/8"

Standards

BHMA Certified; UL Listed; FCC Certified

Function Family

Digital Lock

Features

Weatherproof; Standard ANSI A115 Series Prep; 12-Button Metal Keypad; 2000 User Codes; 40000 event audit trail log; 150 scheduled events; Battery 60000 Cycles; Programmable Relay; Quick Passage Mode

Manufacturer Parent

Napco Security Technologies

Sub-Series

PDL3000-26D

Voltage

5 AA

Access Type

Keypad, Proximity Reader, Standalone

Alternate Part Number-1

124062

Finish code

US26D

Audit Trail

40000 Events

Latch Bolt Throw

1/2in

Length

9.25

Product Overview
PDL3000Trilogy T3 Proximity Cylindrical Audit Trail Digital Lock

Electronic battery operated digital proximity lock. Holds up to 2000 codes, Master, Management, Supervisor & basic user. Multiple "one-time" user codes. 500 event schedule, real time clock & 40,000 event audit trail. Will read most HID card and keyfob formats.

Features:
  • Use the same ID cards as hardwired access systems & install in an hour
  • Save all the downtime and 1/2 the cost of hardwired system
  • Provide access for up to 2000 users, with prox ID-cards or 3 to 6 digit codes including: Master, manager, supervisor and basic user. Users are individually programmed to use a card only, code only, or, for the highest security, both card and code.
  • Built-in HID Prox reader for entry with HID125KZ prox ID cards and keyfob credentials
  • Grade 1 BHMA Certified durability and rugged clutch mechanism ensure long dependable life
  • Weatherproof performance for indoor and outdoor applications, wide operating temperature range of -31°F to +151°F (-35°C to +66°C)
  • Electronic master key system with access customized to each user’s hours - Give each user access to common areas and/or their individual area(s) and do so defined by the actual times they are permitted entry there
  • Tap and Add batch ID card enrollment mode at lock or download from a PC
  • 40,000 event audit trail; 500 scheduled events
  • PC programming/reporting
  • Quick passage mode
  • 5AA battery operation; 60,000 cycles, typical
Specifications: Door Thickness:
  • Fits 1 5/8" to 1 7/8"
Backset:
  • 2 3/4" (2 3/8" also available)
Strike:
  • 1 1/8" x 2 3/4" T strike & 1 1/4" x 4 7/8" ASA strike included
Latch bolt:
  • UL Listed, fire rated 3 hours, 1/2" throw, reversible
Handing:
  • Non-handed
Power:
  • 5 AA alkaline batteries (included)
Keypad:
  • All metal, 12 button. All functions programmed through keypad
Door Prep:
  • Standard ANSI A115 Series prep, modified by adding additional through-bolt holes
Compliances:
  • BHMA Certified Grade 1 heavy duty cylindrical lockset UL Listed 10C Positive Pressure Specification. FCC Certified ADA compliant levers
Cylinder:
  • 6 pin solid brass. SCY1 keyway furnished with all key override locks Schlage, Corbin-Russwin CL, Sargent 480 series, ASSA 65-611 & Lori cylinders can be used with the HW620 tailpiece (supplied)
Interchangeable Core Models:
  • Standard model accepts 6 & 7 pin cylinders from Best, Falcon, Arrow, KSP, Medeco Keymark & Kaba Peaks. IC core models prepped for 6 & 7 pin Yale and Corbin-Russwin IC core models prepped for 6 pin Medeco, Sargent, and Schlage
Finishes:
  • 10B - Oil Rubbed Bronze
  • 26D - Satin Chrome
