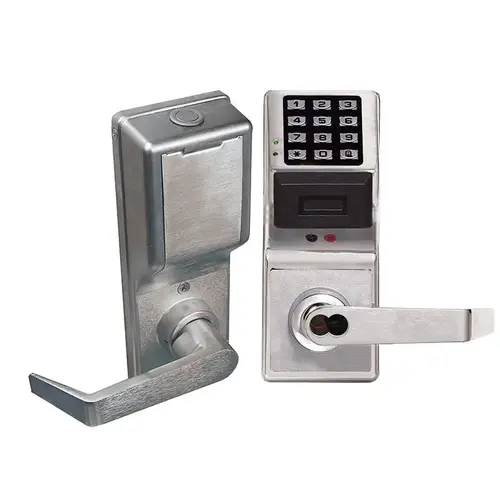

Alarm Lock PDL4100 US26D PDL4100 Trilogy Electronic Digital Proximity, Satin Chrome
Item #: PDL4100 US26D by Alarm Lock
See reviewsSee reviews
In Stock
$1,325.05
/eachSAVE UP TO 132.50
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Up to 2,000 User Codes, Master, Management, Supervisor, and Basic User
- Similar to the DL3200 features plus:
- Multiple "One Time" User Codes
- Interior LED on the inside housing indicates when the privacy session is active
- Rest assured knowing that you are safe within the room, while locking out unauthorized users.
- 500 Event Schedule
- 40,000 Event Audit Trail
- 2000 PIN or PIN/Prox user codes; 500 scheduled events; 40,000 audit trail
- Programmable Keypad
- Privacy Pushbutton – Push button on inside door to temporarily lock-out keypad codes (programmable option)
- Occupied and multi-status LED indicator, flashes when privacy session is active
- Self-stick instructional signage, supplied (bilingual)
- Keypad or PC programming/reporting
- Right- or left-hand, classroom or deadbolt function models
- 1-3/8” mortise cylinder & ASA strike, matching function supplied, only with 4500 Series
- 5AA battery-pak operated; 60,000 cycles, typical
- 3 Architectural finishes (US3 polished brass, 26D satin chrome, 10B duronodic)
- Weatherproof -31˚ to +151˚F (-35˚ to +66˚C)
Finish
Satin Chrome
Function
Digital Lock
Series
PDL Series
Design
Proximity Keypad
Strike
1-1/4" x 4-7/8" Strike
Backset
2-3/4 Inch
Approved for Commercial Use
Yes
Theme
Modern
UL Listed
Yes
Power Source
Battery
Product Class
Commercial
BHMA Certification
Grade 1
Manufacturer Warranty
2 Year
Configuration
Electronic
Door Thickness
1-5/8 to 1-7/8 Inch
ADA
Yes
ANSI Certification
A115
Cylinder
6 Pin Schlage C
Fire Rated
3 Hours {A}
Lit Keypad
No
Number of Codes
2000
Panic Proof
Yes
Remote Access
No
Usage Monitoring
Yes
Smartphone Enabled
No
auto-lock capable
Yes
input type
Keypad
maximum users
2000
temporary access
Yes
Package Height
7.125"
Package Length
9.25"
Package Volume
576.6796875
Package Width
8.75"
Number of users
2000
Keypad Type
Electronic
Latch Backset Dimension
2-3/4 In.
Lock Platform
Cylindrical Lock
Package Qty
1
Programmer
Optional
Reader Technology
125kHz Proximity with Keypad
Software
Optional
Special Marks
Fire rated 3 Hours {A}
Strike Type
ASA; T Strike
Base Material
Brass or Bronze
Grade
ANSI/BHMA Grade 1
Power
Battery Pack
Color Code
626/US26D
Cylinder Type
Conventional
Keyway
Schlage C
Finish Description
Satin Chrome
Keyblank Grouping
SCHL-C-6-1
Product Type
Access Control
Handing
Non-Handed
Warranty
2 Year
Operating Temperature
-31 to 151°F
Application
School; Campus Security
Hand
Non-Handed
Latch Throw
1/2 Inch
ADA Compliant
YES
Finish Family
Satin Chrome
Included Components
(5) AA Alkaline Batteries
Strike Size
1-1/8" x 2-3/4"; 1-1/4" x 4-7/8"
Keying Charges
CCAM
Standards
BHMA Certified; UL Listed; FCC Certified
Function Description
Authorized Digital Code or Prox Technology ID Allows Lever to Retract Latch. Inside Lever is Always in Passage Mode and Permits Instant Egress; Push Button on Inside Door to Temporarily Lock-Out Keypad Codes
Features
Weatherproof; Standard ANSI A115 Series Prep; 12-Button Vandal-Proof Metal Keypad; 2000 User Codes; 40000 Audit Trail; 500 Scheduled Events; Battery 60000 Cycles; Programmable Relay; Multi-Status LED Indicator; Self-Stick Instructional Signage
Manufacturer Parent
Napco Security Technologies
Sub-Series
PDL4100/26D
Cross Bore Size
2-1/8" Bore with additional through-bolt holes
Product Overview
PDL4100Trilogy Electronic Digital Proximity Locks w/ Privacy and Residency Features
Electronic battery operated digital proximity lock. Holds up to 2000 codes, Master, Management, Supervisor & basic user. Multiple "one-time" user codes. 500 event schedule, real time clock & 40,000 event audit trail. Will read most HID card and keyfob formats. Privacy feature will lock out all users for a programmed amount of time. Residency feature-allows exiting without having to lock the door.
Title:- Interior LED on the inside housing indicates when the privacy session is active
- Rest assured knowing that you are safe within the room, while locking out unauthorized users
- 2000 PIN or PIN/Prox user codes; 500 scheduled events; 40,000 audit trail
- Privacy Pushbutton – Push button on inside door to temporarily lock-out keypad codes (programmable option)
- Occupied and multi-status LED indicator, flashes when privacy session is active
- Self-stick instructional signage, supplied (bilingual)
- Keypad or PC programming/reporting
- Right- or left-hand, classroom or deadbolt function models, only with 4500 Series
- 1-3/8" mortise cylinder & ASA strike, matching function supplied, only with 4500 Series
- 5AA battery-pak operated; 60,000 cycles, typical
- Weatherproof -31 ̊ to +151 ̊F (-35 ̊ to +66 ̊C)
- Fits l 5/8" to l 7/8". Other thickness, refer to chart to the right.
- 2 3/4" (2 3/8" also available)
- l 1/8" x 2 3/4" T strike & l 1/4" x 4 7 /8" ASA strike included
- UL Listed, fire rated 3 hours, 1/2" throw, reversible
- Non-banded
- 5 AA alkaline batteries (included)
- All metal, 12 button. Ali functions programmed through keypad
- Standard ANSI A115 Series prep, modified by adding additional through-bolt holes
- BHMA Certified Grade l heavy duty cylindrical lockset UL Listed 10C Positive Pressure Specification. FCC Certified ADA compliant levers
- 6 pin solid brass. SCY1 keyway furnished with all key override locks Schlage, Corbin-Russwin CL, Sargent 480 series, ASSA 65-611 & Lori cylinders can be used with the HW620 taiipiece (supplied)
- Standard model accepts 6 & 7 pin cylinders from Best, Falcon, Arrow, KSP, Medeco Keymark & Kaba Peaks. IC core models prepped for 6 & 7 pin Yale and Corbin-Russwin IC core models prepped for 6 pin Medeco, Sargent, and Schlage
- 26D - Satin Chrome
