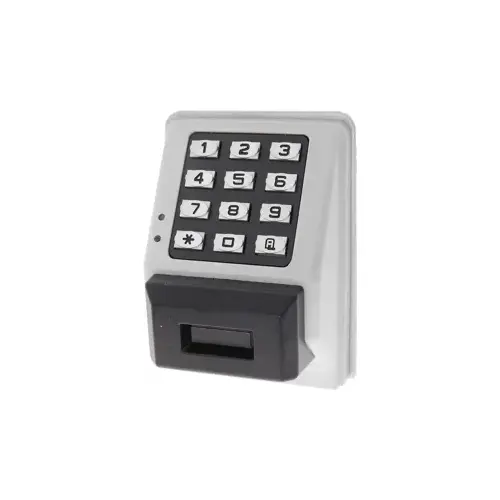

Alarm Lock PDK3000 MS PDK3000 Series Trilogy T3 Electronic Proximity Digital Access Control Keypad, Satin Aluminum Clear Anodized
Item #: PDK3000 MS by Alarm Lock
UPC #: 785026042776
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- 2000 PIN user codes, multilevel security
- Aluminum door retrofit outside trim for Adams Rite® 1850, 1950, 4710, 4070, 4730, 4900 Series and MS1850S and MS1950S Series latch locks
- Add keyless convenience to mechanical latch locks from Trilogy’s all-metal, vandal-resistant 12-button keypad and/or automatic timed-scheduled locking/unlocking and audit trail with 1300 Series
- Ideal for use with 12V or 24V (AC or DC) electric door strikes, mag locks or Alarm Lock Remote Release Mag Lock Kit (adjacent page)
- Wall mount or single gang box
- 2000 users with PC programming/reporting and features
- 40,000 event audit trail by user and 500 event schedule/real time clock (e.g. lock/unlock by time)
- 2 High-Current Rated 8A Relays for entry, alarm zone shunting or lock release by real-time schedule
- Vandal-resistant, all metal 12-button keypad
- Long-life, battery-operated for 80,000 cycles typ. with a low battery alert
- 1.25" key override mortise cylinder supplied
- Keypad or PC programmable
- 40,000 Event audit trail report/print to PC or hand held printer or DTMIII Data Module
- Timed Egress Input – Selectable door open times 5, 10 or 15 seconds
- Timed Egress Input – Selectable door open times 5, 10 or 15 seconds • 500 Scheduled events & real time clock
- Tamper supervised (reportable to alarm system)
- 500 Scheduled events & real time clock
- Remote release feature; request-to-exit inp
- Remote release feature; request-to-exit input
- Weatherproof -31? to 151?F (-35? to +66?C)
- 12 - 24V power supply required
- Vandal-Resistant All-Metal Keypad
- 2000 Users with PC Programming
- 80,000 Cycles Typical Battery Life
- Time Egress Input
- 1-1/4" Key Override Mortise Cylinder
Finish
Metallic Silver
Series
PDK Series
Design
Digital Keypad
Configuration
Electronic
Theme
Commercial
UL Listed
Yes
BHMA Certification
Grade 1
maximum users
2000
Fire Rated
No
Product Class
Commercial
Approved for Commercial Use
Yes
Manufacturer Warranty
2 Year
Color
Satin Aluminum Clear Anodized
Color Code
MS
Package Height
4
Package Length
9.25
Package Volume
185
Package Width
5
Product Type
Access Control
Manufacturer Parent
Napco Security Technologies
For Use With
Electric Door Strikes; Mag Locks; Alarm Lock Remote Release Mag Lock Kit
Function
Electronic Keypad
Sub-Series
EAC_Card Reader Keypad_alarm_lock_2
Contact Ratings
8A
ADA Compliant
No
Mounting Type
Wall
Operating Temperature
-31 to 151°F
Voltage
12/24VAC/VDC
input type
Timed Egress
Number of users
2000
Resistance Properties
Weather Resistant
Features
Remote Release; Tamper Supervised
Access Modes
Keypad; HID Proximity Readed
Access Type
Keypad, Proximity Reader
Alternate Part Number-1
131936
Finish code
MS
Product Overview
PDK3000Trilogy® Weatherproof Keypads: 12/24VAC/DC digital access keypads with PC programming & audit trail
Electronic digital keypad. Available in keypad only and keypad plus prox. Holds up to 2,000 user codes, Master, Management, Supervisor & basic user. 500 event schedule, real time clock & 40,000 event audit trail. Prox unit will read most HID cards and keyfobs.
Features:- 2000 PIN user codes, multilevel security
- Ideal for use with 12V or 24V (AC or DC) electric door strikes, mag locks or Alarm Lock Remote Release Mag Lock Kit (adjacent page)
- Wall mount or single gang box
- 2 High-Current Rated 8A Relays for entry, alarm zone shunting or lock release by real-time schedule
- Vandal-resistant, all metal 12-button keypad
- Keypad or PC programmable
- 40,000 Event audit trail report/print to PC or hand held printer or DTMIII Data Module
- Timed Egress Input – Selectable door open times 3, 10 or 15 seconds
- 500 Scheduled events & real time clock
- Tamper supervised (reportable to alarm system)
- Remote release feature; request-to-exit input
- Weatherproof -31 ̊ to 151 ̊F (-35 ̊ to +66 ̊C)
- Single gang mounting
- Unit provides flying leads for power, relays, tamper and remote release
- 2 form C relays 5AMP minimum contact rating. Red and greed LED indicators. 1 remote release input. Sounder and tamper.
- Operating voltage 12-24VAC/DC field selectable
- 26D - Satin Chrome
- MS - Metallic Silver
- MB - Metallic Bronze
