Trilogy Electronic Digital Lever Lock with Interchangeable Core for Schlage Prep Satin Chrome Finish

Roll over image to zoom in

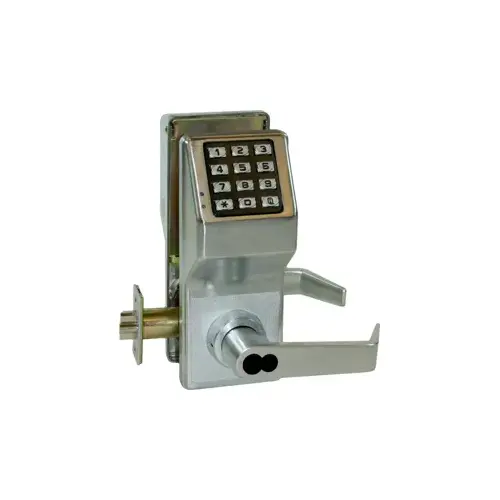

Alarm Lock DL2700IC26DS Trilogy Electronic Digital Lever Lock with Interchangeable Core for Schlage Prep Satin Chrome Finish

Item #: DL2700IC26DS by Alarm Lock

See reviewsSee reviews
In Stock

$832.80

/each
SAVE UP TO 83.28

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Features
  • Constructed from Solid Steel
  • Reversible Handing
  • Multi-Level User Codes and One-Time Service Codes
  • Free Passage, Group or Total Lock-Out Codes
  • Typical 150,000 Cycle Battery Life

Finish

Satin Chrome

Function

DL27-Standard Key Override

Series

DL2 Series

Design

Digital Keypad

Strike

ANSI & T-Strike

Backset

2-3/4 Inch

Cylinder Type

Interchangeable Core

Finish Description

Satin Chrome

Lever Style

Straight

Product Type

Electronic Cylindrical Lock

Grade

ANSI/BHMA Grade 1

Application

Schools; Healthcare; Pharmacies; Rental Properties; Offices; Retail; Airports

Hand

Non-Handed

Handing

Non-Handed

Warranty

2 Year

Color Code

626/US26D

Power Source

5 AA Batteries

Door Thickness

1-5/8 to 1-7/8 Inch

Latch Throw

1/2 Inch

Strike Type

ASA; T Strike

ADA Compliant

YES

Finish Family

Satin Chrome

Included Components

(5) AA Alkaline Batteries; Screws for Wood/Metal Jambs

Strike Size

1-1/8" x 2-3/4"; 1-1/4" x 4-7/8"

Standards

BHMA Certified; UL Listed; FCC Certified

Function Description

Clutch Mechanism Permits Turning Lever Without Retracting Latch, Reduces Stress on Lock Bodies and Spindle. Outside Lever Free Turning in Locked. Entering Access Code/Key Bypass/Remote Bypass Allow Lever to Retract Latch. Inside Lever Instant Egress

Front Size

1-1/8" x 2-1/4"

Function Family

Digital Lock

Features

Standard ANSI 161 Series Prep; Vandal-Proof All Metal Keypad; 100 Different Multi-Level User Codes: Master, 10 Managers, 90 Users, 3 Service Codes; Battery At 200000 Cycles; 2-Wire Remote Override; Programmable Relay

Manufacturer Parent

Napco Security Technologies

Sub-Series

DL2700IC-26D-S

Voltage

5 AA

Keyway

FSIC - Schlage, Less Core

Cylinder Included

Yes

Access Type

Keypad, Standalone

Alternate Part Number-1

157465

Finish code

US26D

Latch Bolt Type

Deadlatch

Lock Category

Cylindrical, Cylindrical Lock

Latch Bolt Throw

1/2in

Product Overview
DL2700Trilogy Electronic Digital Locks

Electronic battery operated digital lock. Holds up to 100 user codes, 1 Master, 10 Manager codes & up to 3 one time user codes.

Features:
  • More codes: up to 100 3-6 digit codes: 1 master, 10 managers, 90 basic users, 3 one time service codes.
  • Uses 5 AA batteries; 5 years battery life or 200,000 cycles, typ.
  • For outdoors, specify WP weatherproof models -31 ̊ to +151 ̊F (-35 ̊ to +66 ̊C)
Specifications: Door Thickness:
  • Fits 1 5/8" to 1 7/8"
Backset:
  • 2 3/4" (2 3/8" also available)
Strike:
  • 1 1/8" x 2 3/4" T strike & 1 1/4" x 4 7/8" ASA strike included
Latch bolt:
  • UL Listed, fire rated 3 hours, 1/2" throw, reversible
Handing:
  • Non-handed
Power:
  • 5 AA alkaline batteries (included)
Keypad:
  • All metal, 12 button. All functions programmed through keypad
Door Prep:
  • Standard ANSI A115 Series prep, modified by adding additional through-bolt holes
Compliances:
  • BHMA Certified Grade 1 heavy duty cylindrical lockset UL Listed 10C Positive Pressure Specification. FCC Certified ADA compliant levers
Cylinder:
  • 6 pin solid brass. SCY1 keyway furnished with all key override lock Schlage, Corbin-Russwin CL, Sargent 480 series, ASSA 65-611 & Lori cylinders can he used with the HW620 tailpiece (supplied)
Interchangeable Core Models:
  • Standard model accepts 6 & 7 pin cylinders from Best, Falcon, Arrow, KSP, Medeco Keymark & Kaba Peaks. IC core models prepped for 6 & 7 pin Yale and Corbin-Russwin IC core models prepped for 6 pin Medeco, Sargent, and Schlage
Finsihes:
  • 10B - Oil Rubbed Dark Bronze
  • 26D - Satin Chrome
