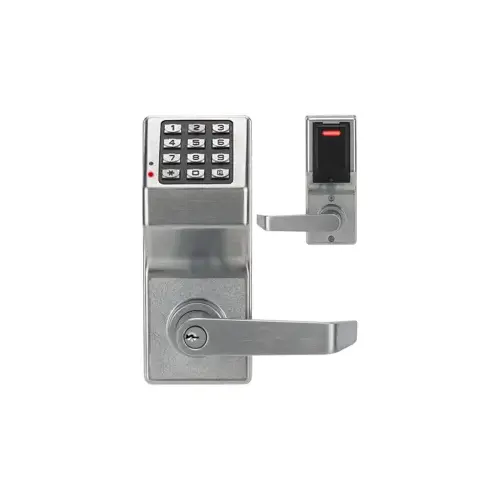

Alarm Lock DL2700LD US26D DL2700 Series Trilogy T2 LocDown Cylindrical Electronic Digital Lock, Satin Chrome
Item #: DL2700LD US26D by Alarm Lock
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Constructed from Solid Steel
- More codes: up to 100 3-6 digit codes: 1 master, 10 managers, 90 basic users, 3 one time service codes
- 5AA battery operated; 5 years battery life or 200,000 cycles, typ.
- Reversible Handing
- Multi-Level User Codes and One-Time Service Codes
- For outdoors, specify WP weatherproof models -31˚ to +151˚F (-35˚ to +66˚C)
- Free Passage, Group or Total Lock-Out Codes
- Typical 150,000 Cycle Battery Life
Finish
Satin Chrome
Function
DL27-Standard Key Override
Series
DL2 Series
Design
Digital Keypad
Strike
ANSI & T-Strike
Backset
2-3/4 Inch
Grade
ANSI/BHMA Grade 1
Power
Battery Pack
Color Code
626/US26D
Door Thickness
1-5/8 to 1-7/8 Inch
Cylinder Type
Conventional
Fire Rated
3 Hours {A}
Package Height
7.125"
Package Length
9.25"
Package Volume
576.6796875
Package Width
8.75"
Number of users
100
Keypad Type
Electronic
Latch Backset Dimension
2-3/4 In.
Lock Platform
Cylindrical Lock
Package Qty
1
Programmer
Optional
Reader Technology
Keypad Only
Software
Optional
Special Marks
Fire rated 3 Hours {A}
Strike Type
ASA; T Strike
Base Material
Brass or Bronze
Keyway
Schlage C
Finish Description
Satin Chrome
Lever Style
Straight
Keyblank Grouping
SCHL-C-6-1
Product Type
Electronic Cylindrical Lock
Keying Charges
CCAM
Hand
Non-Handed
Power Source
5 AA Batteries
Latch Throw
1/2 Inch
ADA Compliant
YES
Finish Family
Satin Chrome
Included Components
(5) AA Alkaline Batteries; Screws for Wood/Metal Jambs
Standards
BHMA Certified; UL Listed; FCC Certified
Function Description
Clutch Mechanism Permits Turning Lever Without Retracting Latch, Reduces Stress on Lock Bodies and Spindle. Outside Lever Free Turning in Locked. Entering Access Code/Key Bypass/Remote Bypass Allow Lever to Retract Latch. Inside Lever Instant Egress
Front Size
1-1/8" x 2-1/4"
Function Family
Digital Lock
Features
Weatherproof; ANSI 161 Series Prep; Vandal-Proof Metal Keypad; 100 Multi-Level User Codes: Master, 10 Managers, 90 Users, 3 Service; Battery At 200000 Cycles; 2-Wire Remote Override; Programmable Relay; Visual, Audible Entry Indicators
Strike Size
1-1/8" x 2-3/4"; 1-1/4" x 4-7/8"
Manufacturer Parent
Napco Security Technologies
Sub-Series
DL2700LD-26D
Application
Schools; Healthcare; Pharmacies; Rental Properties; Offices; Retail; Airports
Operating Temperature
-31 to 151°F
Warranty
2 Year
Handing
Non-Handed
Voltage
5 AA
Options
LocDown
Cylinder Included
Yes
Access Type
Electronic, Standalone
Alternate Part Number-1
155738
Finish code
US26D
Knob/Lever Design
Straight
Lock Category
Cylindrical Lock
Proximity Format
Keyfob, Keypad
Knob/Lever Style
Lever
Product Overview
DL2700Trilogy Electronic Digital Locks
Electronic battery operated digital lock. Holds up to 100 user codes, 1 Master, 10 Manager codes & up to 3 one time user codes.
Features:- More codes: up to 100 3-6 digit codes: 1 master, 10 managers, 90 basic users, 3 one time service codes.
- Uses 5 AA batteries; 5 years battery life or 200,000 cycles, typ.
- For outdoors, specify WP weatherproof models -31 ̊ to +151 ̊F (-35 ̊ to +66 ̊C)
- Fits 1 5/8" to 1 7/8"
- 2 3/4" (2 3/8" also available)
- 1 1/8" x 2 3/4" T strike & 1 1/4" x 4 7/8" ASA strike included
- UL Listed, fire rated 3 hours, 1/2" throw, reversible
- Non-handed
- 5 AA alkaline batteries (included)
- All metal, 12 button. All functions programmed through keypad
- Standard ANSI A115 Series prep, modified by adding additional through-bolt holes
- BHMA Certified Grade 1 heavy duty cylindrical lockset UL Listed 10C Positive Pressure Specification. FCC Certified ADA compliant levers
- 6 pin solid brass. SCY1 keyway furnished with all key override lock Schlage, Corbin-Russwin CL, Sargent 480 series, ASSA 65-611 & Lori cylinders can he used with the HW620 tailpiece (supplied)
- Standard model accepts 6 & 7 pin cylinders from Best, Falcon, Arrow, KSP, Medeco Keymark & Kaba Peaks. IC core models prepped for 6 & 7 pin Yale and Corbin-Russwin IC core models prepped for 6 pin Medeco, Sargent, and Schlage
- 10B - Oil Rubbed Dark Bronze
- 26D - Satin Chrome
