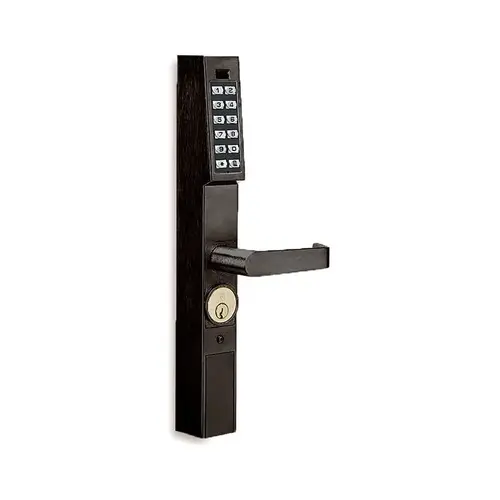

Alarm Lock DL1200ET/10B Trilogy Narrow Stile Digital Lock ET Trim Oil Rubbed Bronze Finish
Item #: DL1200ET/10B by Alarm Lock
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- 100 3-6 Digit PIN User Codes
- Adds vandal-resistant keyless access to panic exit doors
- Finger Tip Programmable
- Battery Operated for 100,000 Cycles
- Protects storefronts and managed properties 24/7
- 1-1/4" Key Override
- 100 users supported (3-5 digit codes)
- Fully Reversible
- Designed with all-metal, vandal-resistant 12-button keypads
- Supports 3-6 digit PIN codes and multilevel user hierarchy
- Easily installs on most aluminum glass doors
- Works with Jackson, Dor-O-Matic, Von Duprin (Von 33 LH (RHR) only), Dorma, Arrow, DCI & Corbin panic devices (Dor-O-Matic, Jackson and Dorma devices require thumb-turn or knob Note: Must purchase separate TP assembly – See price book).
Finish
Oil Rubbed Bronze
Function
Entry
Series
DL Series
Design
Narrow Stile
Backset
1-1/2", 1-1/8", 1"
Material
Zinc
Approved for Commercial Use
Yes
Door Thickness
1-3/4 In.
Width
1.75
Handle Material
Metal
UL Listed
No
Power Source
Battery
Product Class
Commercial
BHMA Certification
Grade 1
Height
14.375
Configuration
Electronic
ADA
Yes
ANSI Approved
Yes
Fire Rated
No
Lit Keypad
No
Number of Codes
100
Panic Proof
Yes
Remote Access
No
Smartphone Enabled
No
Usage Monitoring
No
input type
Keypad
maximum users
100
temporary access
No
Theme
Commercial, Contemporary
Manufacturer Warranty
2 Year, 2 Year Limited
Handing
Left, Right
Handle Style
Electronic, Knob, Lever
Exit Trim Function
Keyless Entry
Package Volume
388.828125
Reader Technology
Keypad Only
Color
Dark Oxidized Satin Bronze Oil Rubbed
Grade
Grade 1
Programmer
Optional
Cylinder Type
Conventional Cylinder
Package Qty
1
Package Height
2.25"
Number of users
100
Package Width
9.875"
Keypad Type
Electronic
Color Code
613/US10B
Lock Platform
Exit Device Trim
Software
Optional
Base Material
Bronze
Power
Lithium 3V
Package Length
17.5"
Keyway
Schlage C
Finish Description
Oil Rubbed Dark Bronze
Keyblank Grouping
SCHL-C-6-1
Product Type
Access Control
ADA Approved
False
Keying Charges
CCAM
Alternate Part Number-1
155826
Voltage
2 3V
Cylinder Included
Yes
Access Type
Keypad, Standalone
Finish code
US10B
Product Overview
Battery Powered 100 Users Std Mortise Cylinder SC1 Straight Lever Requires separate tailpiece for specific exit device utilized Satin Bronze
Trilogy Narrow Stile lever models designed to work with Adams Rite latch series Thumbturn models support swing & hook bolt products. Plus PC-programmable 1300 Series models provide audit trail log of keyless entry door users.br / br / - Adds vandal-resistant keyless access to panic exit doorsbr / - Protects storefronts and managed properties 24/7br / -100 users supported (3-5 digit codes)br / - Designed with all-metal vandal-resistant 12-button keypadsbr / -Supports 3-6 digit PIN codes and multilevel user hierarchybr / -Easily installs on most aluminum glass doorsbr / -Works with Jackson Dor-O-Matic Von Duprin (Von 33 LH (RHR) only) Dorma Arrow DCI & Corbin panic devices Must purchase separate TP assembly br / Jackson 1095 Dor-O-Matic - 2090 Von Duprin 22 Von Duprin 33 LH (RHR) only Dorma - 5300 Arrow - 51200/51250 DCI - 1200/1300 Corbin - ED8200br / br / -Door thickness supports style 1 ï¾¾ï¾" onlybr / - Handing non-handedbr / - Power uses 2 DL123A lithium batteriesbr / - Keypad all metal vandal resistant 12 button keypad supports 3-5 digit PIN codesbr / - Cylinder supplied with 6 pin mortise standard mortise cylinder SC1br / - Keyway. Use 1 3/8ï¾" or 1 ï¾½ï¾" cylindersbr / - Cams cam supplied works with generic Alarm Lock cylinder. Other Standard cams available for Corbin-Russwin Marks Arrow Sargent & Schlage. IC type cams for Best Corbin-Russwin Medeco Schlage & Yale are also available
This product contains 1 cylinders per lock and is typically keyed alike in quantities of 1.
Trilogy Narrow Stile lever models designed to work with Adams Rite latch series Thumbturn models support swing & hook bolt products. Plus PC-programmable 1300 Series models provide audit trail log of keyless entry door users.br / br / - Adds vandal-resistant keyless access to panic exit doorsbr / - Protects storefronts and managed properties 24/7br / -100 users supported (3-5 digit codes)br / - Designed with all-metal vandal-resistant 12-button keypadsbr / -Supports 3-6 digit PIN codes and multilevel user hierarchybr / -Easily installs on most aluminum glass doorsbr / -Works with Jackson Dor-O-Matic Von Duprin (Von 33 LH (RHR) only) Dorma Arrow DCI & Corbin panic devices Must purchase separate TP assembly br / Jackson 1095 Dor-O-Matic - 2090 Von Duprin 22 Von Duprin 33 LH (RHR) only Dorma - 5300 Arrow - 51200/51250 DCI - 1200/1300 Corbin - ED8200br / br / -Door thickness supports style 1 ï¾¾ï¾" onlybr / - Handing non-handedbr / - Power uses 2 DL123A lithium batteriesbr / - Keypad all metal vandal resistant 12 button keypad supports 3-5 digit PIN codesbr / - Cylinder supplied with 6 pin mortise standard mortise cylinder SC1br / - Keyway. Use 1 3/8ï¾" or 1 ï¾½ï¾" cylindersbr / - Cams cam supplied works with generic Alarm Lock cylinder. Other Standard cams available for Corbin-Russwin Marks Arrow Sargent & Schlage. IC type cams for Best Corbin-Russwin Medeco Schlage & Yale are also available
This product contains 1 cylinders per lock and is typically keyed alike in quantities of 1.
