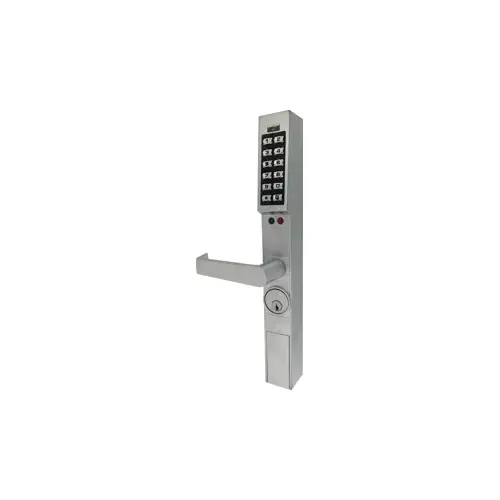

Alarm Lock DL1300ET/26D Trilogy Narrow Stile 2000 User Electronic Digital Keypad Lever Exterior Trim for Exit Devices Satin Chrome
Item #: DL1300ET/26D by Alarm Lock
See reviews See
reviews
In Stock $758.70 /each
SAVE UP TO 75.87
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How
Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Retrofit Outside Trim
- Adds vandal-resistant keyless access to panic exit doors
- 2000 PIN User Codes
- 40,000 Event Audit Trail By User
- Protects storefronts and managed properties 24/7 • 100 users supported (3-5 digit codes)
- Batter Operated for 80,000 Cycles
- Designed with all-metal, vandal-resistant 12-button keypads
- 1-1/4" Key Override Mortise Cylinder
- Supports 3-6 digit PIN codes and multilevel user hierarchy
- Easily installs on most aluminum glass doors
- Works with Jackson, Dor-O-Matic, Von Duprin (Von 33 LH (RHR) only), Dorma, Arrow, DCI & Corbin panic devices (Dor-O-Matic, Jackson and Dorma devices require thumb-turn or knob Note: Must purchase separate TP assembly – See price book).
- 2000 Users (PIN code or prox ID on PDL model)
- Two finishes 2 Architectural finishes (26D satin chrome,10B duronodic)
Finish
Satin Chrome
Function
Entry
Design
Narrow Stile
Backset
1-1/2", 1-1/8", 1"
Material
Zinc
Approved for Commercial Use
Yes
Door Thickness
1-3/4 In.
Width
1.75
Handle Material
Metal
UL Listed
No
Power Source
Battery
Product Class
Commercial
BHMA Certification
Grade 1
Height
14.375
Configuration
Electronic
ADA
Yes
ANSI Approved
Yes
Fire Rated
No
Lit Keypad
No
Number of Codes
2000
Panic Proof
Yes
Remote Access
No
Smartphone Enabled
No
Usage Monitoring
Yes
input type
Keypad
maximum users
2000
temporary access
No
Handing
Left, Right
Theme
Commercial, Contemporary
Manufacturer Warranty
2 Year, 2 Year Limited
Handle Style
Electronic, Knob, Lever
Exit Trim Function
Keyless Entry
Package Length
17.5"
Power
Lithium 3V
Base Material
Brass or Bronze
Software
Optional
Lock Platform
Exit Device Trim
Access Function
Software Programmable
Color Code
626/US26D
Keypad Type
Electronic
Package Width
9.875"
Number of users
2000
Package Height
2.25"
Package Qty
1
Cylinder Type
Mortise Cylinder
Programmer
Optional
Grade
Grade 1
Reader Technology
Keypad Only
Package Volume
388.828125
Voltage
2 3V
Keyway
Schlage - C
Cylinder Included
Yes
Access Type
Keypad, Standalone
Alternate Part Number-1
157015
Finish code
US26D
Lock Category
Mortise Lock Trim
Pushbutton Exit Trim, 2000 Users, 40,000 Event Audit Trail, Straight Lever, Satin Chrome
Trilogy Narrow Stile lever models designed to work with Adams Rite latch series; Thumbturn models support swing & hook bolt products. Plus, PC-programmable 1300 Series models provide audit trail log of keyless entry door users.
Narrow Stile Exit: For aluminum door retrofits.
Trilogy Narrow Stile lever models designed to work with Adams Rite® latch series; Thumbturn models support swing & hook bolt products. Plus, PC-programmable 1300 Series models provide audit trail log of keyless entry door users.
