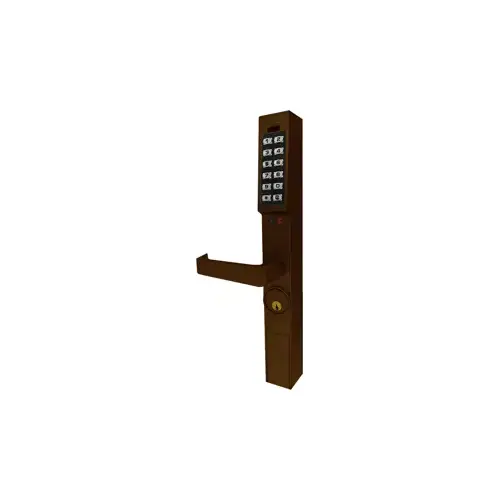

DL1300 Series Trilogy Narrow Stile Digital Aluminum Door Retrofit Outside Lever Trim Oil Rubbed Dark Bronze

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Alarm Lock DL1300/10B1 DL1300 Series Trilogy Narrow Stile Digital Aluminum Door Retrofit Outside Lever Trim Oil Rubbed Dark Bronze

Item #: DL1300/10B1 by Alarm Lock

See reviewsSee reviews
See reviews summary
In Stock

$724.69

/each
SAVE UP TO 72.47
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 88 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Retrofit Outside Trim
  • Add keyless convenience to mechanical latch locks from Trilogy’s allmetal, vandal-resistant 12-button keypad and/or automatic timedscheduled locking/unlocking and audit trail with 1300 Series
  • Aluminum door retrofit outside trim for Adams Rite® 1850, 1950, 4710, 4070*, 4730, 4900 Series and MS1850S* and MS1950S* Series latch locks
  • 2000 PIN User Codes
  • 40,000 Event Audit Trail By User
  • DL1200 supports 100 3-5 digit PIN user codes, fingertip programmable
  • DL1300 (and Prox PDL1300, right) support 2000 users, PC programming/reporting and features 40,000 event audit trail by user and 500 event schedule/real time clock (e.g. lock/unlock by time)
  • Batter Operated for 80,000 Cycles
  • 1-1/4" Key Override Mortise Cylinder
  • Weatherproof -31˚ to +151˚F (-35˚ to +66˚C) • Long-life, battery-operated for 100,000 and 80,000 cycles respectively, typical on 2 lithium 3V batteries, supplied; low battery alert
  • Compact styling 14-3/8”H x 1-5/8”D x 1-3/4”W
  • Key override mortise cylinder, 1-1/4” supplied. (Supports 1-1/8”, 1-1/4” and 1-3/8”). Also interchangeable cores supported (Corbin/ Russwin, Yale, Schlage, Medeco.)
  • Backsets 31/32”,1-1/8” and 1-1/2”; Stile thickness 1-3/4”
  • Non-handed; fully field-reversible
  • Two finishes US26D satin & 10B Durondic

Finish

Oil Rubbed Dark Bronze

Function

Entry

Series

DL Series

Design

Narrow Stile

Backset

1-1/2", 1-1/8", 1"

Package Volume

388.828125

Reader Technology

Keypad Only

Color

Dark Oxidized Satin Bronze Oil Rubbed

Grade

Grade 1

Programmer

Optional

Cylinder Type

Conventional Cylinder

Package Qty

1

Package Height

2.25"

Door Thickness

1-3/4 In.

Number of users

2000

Package Width

9.875"

Keypad Type

Electronic

Color Code

613/US10B

Access Function

Software Programmable

Lock Platform

Narrow Stile Trim Latch

Software

Optional

Base Material

Bronze

Power

Lithium 3V

Package Length

17.5"

Keyway

Schlage C

Finish Description

Oil Rubbed Dark Bronze

Keyblank Grouping

SCHL-C-6-1

Product Type

Access Control

Keying Charges

CCAM

Alternate Part Number-1

144010

Voltage

2 3V

Handing

Non-Handed

Cylinder Included

Yes

Access Type

Keypad, Standalone

Finish code

US10B

Lock Category

Mortise Lock Trim

Warranty

1 Year From Date of Purchase.

Aluminium Bottle Contents

Swinging

ProductType

Manual

Height

2.38

Length

5.75

Width

3.5

Use With

Electric Lockset

Material

Zinc Alloy

Fire Rated

No

Manufacturer Warranty

Limited 2 Year Warranty

Power Supply

typ.on 2 lithium 3V batteries

Door Range

1-3/4"

Hazardous Material

No

Cross Bore Size

1-1/4" Bore with additional through-bolt holes

Latch Faceplate Dimension

1-1/8" x 2-1/4"

Chassis Type

Cylindrical Chassis

No of inners

1

Product Overview
DL1300 Series Trilogy Narrow Stile Digital Aluminum Door Retrofit Outside Lever Trim, for Adams Rite 4500, 4700, & 4900 Series Deadlatch, in US10B Duronodic
DL1300 Series – Aluminum door retrofit outside trim. Works with Adams Rite® 4710, 4730, 4900 series deadlatch. 2,000 user codes, Master, Manager, basic user and multiple one time user codes. 500 event schedule, real time clock and 40,000 event audit trail.


SPECIFICATIONS
  • Door thickness: Supports stile 1-3/4" only
  • Backset: Supports 31/32", 1-1/8" and 1-1/2"
  • Latch: Works with Adams Rite® 4710, 4730, 4900 series deadlatch
  • Handing: Non-handed
  • Power: Uses 2 DL123A Lithium batteries
  • Keypad: All metal, vandal resistant 12 button keypad supports 3-5 digit PIN codes
  • Cylinder: Supplied with 6 pin standard mortise cylinder SC1 Keyway. Use 1-3/8" or 1-1/2" cylinders
  • Cams: Cam supplied works with generic Alarm Lock cylinder. Other Standard cams available for Corbin-Russwin, Marks, Arrow, Sargent and Schlage. IC type cams for Best, Corbin-Russwin, Medeco, Schlage and Yale are also available

This product contains 1 cylinders per lock and is typically keyed alike in quantities of 1.
