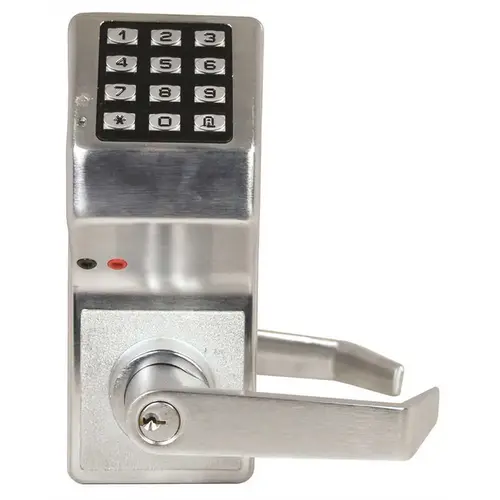

Alarm Lock DL3000 US26DClick To Copy Digital Lock Satin Chrome Finish
Item #: DL3000 US26D by Alarm Lock
UPC #: 785026092894
See reviewsSee reviews
HURRY! Low in stock
$893.59
/eachSAVE UP TO 89.36
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 3 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Easy to install: Retrofits most cylindrical locksets and digital locks
- 300 multilevel user codes; 1600 event log
- 150 scheduled lock/unlock events
- Multi-level user codes & one-time service codes
- For outdoors, specify WP weatherproof models -31˚ to +151˚F (-35˚ to +66˚C)
- Free passage, group- or total lock-out modes
- Fingertip programmable at vandalproof all-metal keypad
- ADA compliant lever
- Long-life battery operation - 100,000 cycles typical
- Lever features clutch mechanism for ADA and longer life
- Programmable relay functions
- Supports 300 3-6 digit PIN codesMasterManagementSupervisorBasic usersOne-time service
- UL Listed, BHMA Grade 1 lockset with 3hr. fire rated latch
- 1600 event audit trail and 150 scheduled events
- Fits 1.625" - 1.875" door thickness
- Uses 5AA off-the-shelf batteries with low-battery alert
- 1.125" x 2.75" T strike and 1.25" x 4.875" ASA strike included
- Includes 6-pin solid brass standard cylinder with Schlage SC1 keyway cylinder or upgrade to interchangeable core prep
- Standard interchangeable core prep accepts 6 & 7 pin cylinders from Best, Falcon, Arrow, KSP, Medeco Keymark and Kaba Peaks
- Dimensions: Outside housing: 8" H x 3.25" W x 1.875" D, Inside housing: 8.25" H x 3.25" W x 1.75" D
- Retrofits Most Cylindrical Locksets and Digital Locks
- Multi-Level User Codes and One-Time Service Codes
- Free Passage, Group or Total Lock-Out Codes
- Typical 100,000 Cycle Battery Life
- Non-Handed
Finish
Satin Chrome
Function
Entry
Series
DL Series
Design
Digital Keypad
Product Class
Commercial
maximum users
300
Fire Rated
3 Hours {A}
Approved for Commercial Use
Yes
Handle Material
Metal
Remote Access
No
auto-lock capable
Yes
Width
3.25
Manufacturer Warranty
2 Year
Smartphone Enabled
No
UL Listed
Yes
Handle Style
Lever
BHMA Certification
Grade 1
Configuration
Electronic
Number of Codes
300
Usage Monitoring
No
ADA
Yes
Panic Proof
Yes
Cylinder
6 Pin Schlage C
ANSI Certification
A115
input type
Keypad
Height
8.25
temporary access
Yes
Backset
2-3/4", 2-3/8"
Power Source
Battery
Door Thickness
1-5/8 In. to 1-7/8 In.
Strike
1-1/8" x 2-3/4" T-Strike, 1-1/4" x 4-7/8" ASA Strike
Lit Keypad
No
Theme
Modern
Projection
1.75
Handle Width
3.25
Handle Projection
1.75
Package Height
7.125"
Package Length
9.25"
Package Volume
576.6796875
Package Width
8.75"
Number of users
300
Keypad Type
Electronic
Latch Backset Dimension
2-3/4 In.
Lock Platform
Cylindrical Lock
Package Qty
1
Programmer
Optional
Reader Technology
Keypad Only
Software
Optional
Special Marks
Fire rated 3 Hours {A}
Strike Type
T-Standard and ASA
Base Material
Brass or Bronze
Grade
Grade 1
Power
Battery Pack
Color Code
626/US26D
Cylinder Type
Conventional Cylinder
Warranty
2 Years
Pack Size
1
Backset size (in.)
2-3/4
Certifications and Listings
UL Listed
Door Handing
Universal/Reversible
General Material
Zinc
Hardware Finish Family
Chrome
Maximum User Codes
2000
Required Battery Type
AA
Security/ANSI Grade
ANSI Grade 1 (Best)
Lock Type
Keyed Entry
Keyway
Schlage C
Finish Description
Satin Chrome
Keyblank Grouping
SCHL-C-6-1
Product Type
Electronic Cylindrical Lock
Keying Charges
CCAM
UNSPSC
46171500
Product Overview
Digital Lock Satin Chrome Finish
