L Series Trim Pack, 05 Lever, A Rose Satin Chrome

Roll over image to zoom in

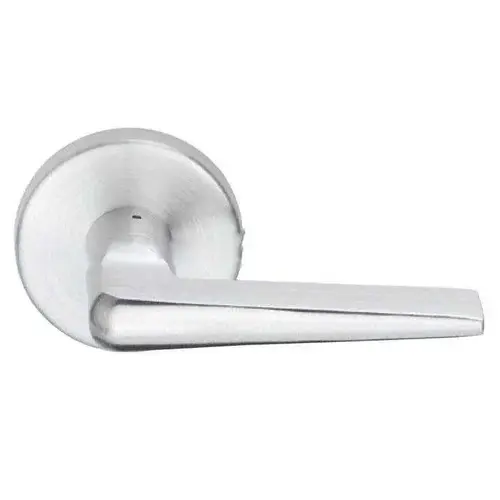

Schlage Commercial 09-454 05A 626 L Series Trim Pack, 05 Lever, A Rose Satin Chrome

Item #: 09-454 05A 626 by Schlage Commercial

See reviews See reviews

In Stock $517.52 /each

SAVE UP TO 51.75

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

  • L Series
  • 05 Lever and A Rose
  • Certified Schlage Parts
  • Made With Strong Materials
  • Many Parts Are Finish Specific


Satin Chrome


Rose Trim Pack


05 Lever and A Rose

Color Code


Lever/Knob Design

05 - Lever

Package Qty


Rose/Escutcheon Design

A - Rose

Finish Description

Satin Chrome



Lever Style


Product Type

Lock Part/Accessory

Rose/Escutcheon Trim

A-Wrought Rose



ADA Approved


For Use With

L9010; L/LV9070; L/LV9080; L9090; L9091; L9092; L9093; L9094; L9095; L9465




2-3/4 Inch


Limited Lifetime Mechanical/Finish

Product Height

2-1/8 Inch

ADA Compliant


Finish Family

Satin Chrome

Included Components

Mounting Screws; Mounting Plates; Spring Cages; L Mounting Posts; Strike Boxes

Lever Size

3-3/4 Inch



Function Family


Product Projection

2-7/8 Inch

Manufacturer Parent


Rose Size

2-1/8 Inch

Lever Style Family

Straight Lever



Handle Type


Door Thickness

1-3/4 inch

L SeriesMortise Lock

The Schlage L Series has long been the benchmark for mortise locks. The L Series is more than strength and security – it offers tremendous flexibility to allow it to meet the needs of most every application. Over 55 functions, 35 lever and knob designs, eight different roses and escutcheons, and a multitude of prep options are just the beginning.

180 degree visibility indicators, advanced motor-driven electrified functions, a universal lock case that supports 10 different functions, and the ability to suite across tubular, exit device, and multipoint locks allow the Schlage L Series to integrate seamlessly into any environment.

Key features:
  • Exceeds ANSI/BHMA Gradel operational and security standards
  • Expansive list of configurations and options, including retrofit indicators
  • 50 standard mechanical functions, custom functions also offered
  • "The Original" universal lock case allows creation of 10 functions from a single lock body
  • 14 finishes and 33 levers, two knobs, five roses and three escutcheon designs
  • Supports standard, SFIC and FSIC cylinder formats
  • Multiple key systems available - open, patented, restricted, geographic exclusive, UL 437
Specifications: Case material:
  • CRS with zinc dichromate plating
Case size:
  • 4 7/16" x 3 5/8" x 1" (113 mm x 92 mm x 25 mm)
  • Knob or lever to cylinder: 3 7/8" (98 mm); knob or lever to thumbturn hub: 2 11/16" (68 mm)
Door thickness:
  • Standard: 1 3/4" (44 mm)
  • Non-handed
33 lever designs:
  • Forged brass or bronze and cast stainless steel
Two knob designs:
  • Heavy-duty wrought brass, bronze or stainless steel
Ligature resistant:
  • lever (SL1) and knob (SK1)
Tactile warning applied to outside lever:
  • Available on 01, 02, 03, 05, 06, 07, 12, 17, 18, M51, M52, M81, ME1, ME2, ME3 lever designs
L escutcheons:
  • 7 15/16" x 1 3/4" x 7/16" (202 mm x 44 mm x 11 mm);
    cold-forged brass or bronze and stainless steel
N escutcheons:
  • 7 7/8" x 2 1/2" x 7/16" (200 mm x 64 mm x 11 mm);
    heavy wrought reinforced brass, bronze and stainless steel
  • A ,B ,C: wrought brass or bronze and stainless steel;
    AVA and MER: forged brass
  • 14 available: 605, 606, 609, 612, 613, 619, 622, 625, 626, 626AM, 629, 630, 630AM, 643e
  • Available with knob both sides, lever both sides, or knob/lever combinations. Roses cannot be combined with escutcheons.
  • 2 3/4" (70 mm) only
  • 1 1/4" x 5 9/16" x 7/32" (32 mm x 141 mm x 6 mm)
  • 1" (25 mm) throw stainless steel deadbolt
  • 3/4" (19 mm) throw stainless steel latch with anti-friction tongue
  • 1 1/8" x 3 1/2" (29 mm x 89 mm) with dust box
  • Standard: Pin and tumbler mechanism in the Patented Schlage Everest 29 S123 keyway (6-pin); two nickel silver cut keys per lock
Certifications: ANSI/BHMA:
  • With FSIC interchangeable core cylinders: Grade 2 Security
  • With SFIC interchangeable core cylinders: Grade 3 Security
  • ASTM F476-76 Grade 40
  • Complies with ICC A117.1 Accessible and Usable Buildings and Facilities
  • UL 10C and CAN/ULC-S104 3-hour Fire Listed
  • All locks listed for A label single doors,
    4' x 10' and pairs 8' x 10'
  • Letter F and UL symbol on latch front indicate list
  • UL 437 Listed when using UL 437 cylinder
  • UL Listed for 3-hour fire door (except L9076 and L9077)
CA Fire Code:
(Formerly Title 19, California State Fire Marshal Standard)
  • All levers with a return to door of 1/2"
    (64 mm) or less comply
FL Building Code:
  • Miami-Dade NOA's and Florida Building Commission Listings
  • 3 year limited mechanical and 1 year limited electromechanical
