Features
Material
Steel
Nominal Size
1/4"
Pressure rating
300 psi
Nomenclature
12-603AIR LINE NIPPLE 1/4 MALE
Connection Type
MNPT
For Use With
13-600 Series Part Numbers
Thread Size
1/4 In. MNPT
Design
Tru-Flate
Product Overview

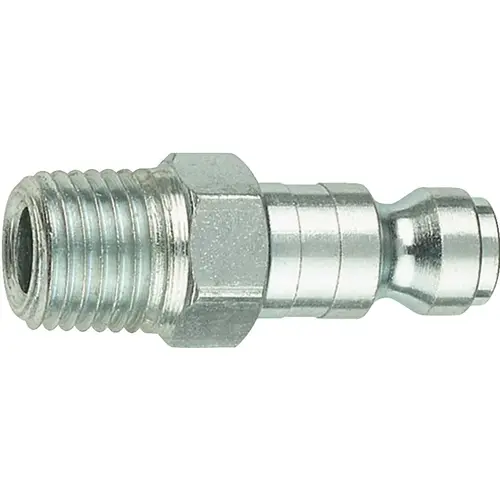

AIR LINE NIPPLE 1/4 MALE
Specifications:
Specifications:
Application: For compressed air lines
The Tru-Flate design plug is recognized by the extremely short pilot, however it has the widest metal section between the groove and the pilot. The sealing surface on the end of the plug is wider than other interchanges, resulting in better sealing and longer seal life. The Tru-Flate design coupler utilizes the tubular valve which supports the seal and allows more air flow at lower pressure drops than most competitive couplers. The protective collar guards against accidental disconnect.
