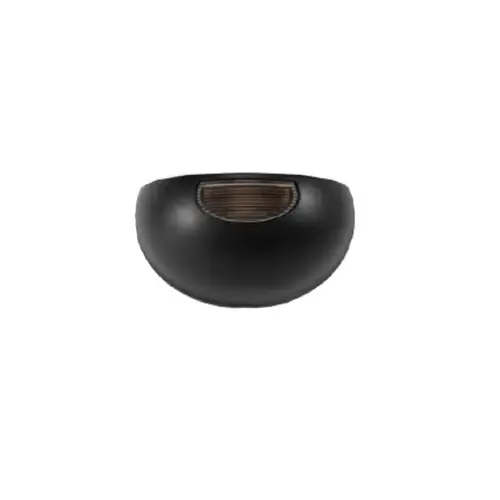

The BATMotion Sensor

The BAT sensor is a microwave motion sensor using Dopler effect radar technology. Used for primary or secoundary activation on automatic pedstrian doors. It may be paired along with any of our swinging, sliding, folding and revolving doors. Easily switches between a wide or narrow detetion pattern and offers several horizontal and vertical angle adjustments to allow total flexibility to conform to any environment or application.

Features & Benefits: State of the Art "DRO" Technology:

• Reliable detection of people and vehicles

"Micro-Motion" detection capability:

• Prevents premature clossing of door due to slow
  moving people
• Reduces fright factor that leads to frivolous lawsuits

Ability to recognize direction of traffic:

• For maximum energy conservation savings

Pedestrian automatic door activation sensor for:

• Swinging doors

• Sliding doors

• Balanced sliding doors

• Revolving doors

Product Description & Specifications: Antenna Characteristics:

• The BAT sensor is capable of providing a wide or narrow detection pattern based upon the antenna selection.
• Wide: 15'W -7'D Narrow: 6 1/2'W - 13'D Max

Horizontal Adjustment:

• An offset pattern can be achieved by rotating antennamleftmor right.

Dipswitch Setting:

• One-way I Unidirectional capability
• Two-way/ Bidirectional capability
• Relay contact: NO/NC
• Micro-Motion detection capable

Specifications: Product Part Number:

• 200.1068

Microwave Frequency:

• 24.075 - 24.175 GHZ

Transmitting Power:

• < 20 dbm

Supply Voltage:

• 12-36 VDC / 12-28 VAC

Power Consumption:

• < 1w

Output Relay:

• Dry contact normally open (N .0.)
• or normally closed (N.C.)

Max. Contact Switching Voltage:

• 48 Volts AC/ DC

Max. Contact Switching Current:

• Max. 0.5A AC/ lA DC (resistive)

Detection Speed:

• Standard 2.5" per second
• (6 cm, per second)

Angle:

• Vertical: 0' to 90'
• Horizontal: -30' to 30'

Mounting Height:

• 7' (2.1m) standard
• 13' (4m) maximum

Degree of Protection:

• NEMA 35 (IP54)

Temperature Range:

• -4°F to 131°F
• (-20°C to 55°C)

Dimensions:

• 4 7/8" (W) x 2 1/2" (H) x 2 1/4" (D)
• (123 mm x 65mm x 58mm)

Weight:

• 4.6 ounces
• (130g)

Conformity:

• US: Compliant with FCC regulation S, part 15.
• Canada: Contains IC approved component.

Material:

• Polycarbonate (PC), ABS

Housing color:

• Black

Cable length

• 6ft (2m)
