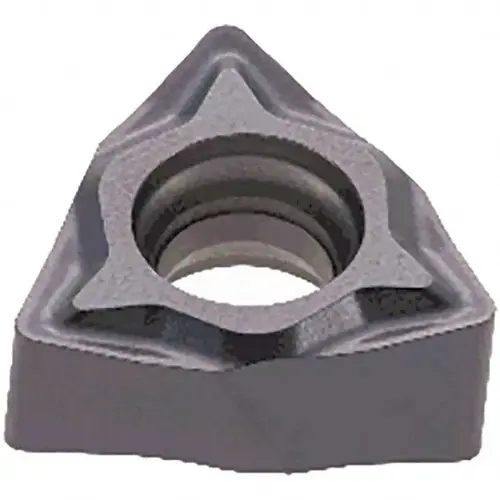

Tungaloy 6723698-XCP10 Turning Insert: WXGU040308R-TSW AH725, Solid Carbide - pack of 10

Item #: 6723698-XCP10 by Tungaloy

Brand: Tungaloy

See reviewsSee reviews
See reviews summary

The item is currently out of stock and it may or may not be restocked
OUT OF STOCK

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features

Insert Material

Carbide

Insert Thickness

3.18

Insert Thickness (Decimal Inch)

0.1250

Corner Radius (mm)

0.80

Vendor Drop Ship

Y

Maximum Depth of Cut (Decimal Inch)

0.0787

Maximum Depth of Cut (mm)

2.00

Iso Code

WXGU 040308R

Width (Decimal Inch - 4 Decimals)

0.2620in

Relief Angle

5

Cutting Edge Style

Wiper Edge

Clearance Code

X

Rake

Positive

Material Grade

P15

Insert Length (Decimal Inch)

0.2620

Insert Holding Method

Screw

Coating/Finish

TiAlN

Rake Angle

10

UNSPSC Code

23242105

Corner Radius (Inch)

1/32

Insert Style

WXGU

Manufacturers Catalog Number

6723698

Insert Hand

Right Hand

Manufacturer Grade

AH725

Inscribed Circle (Inch)

1/4

Inscribed Circle (mm)

6.35

Standards

ANSI

Inscribed Circle (Decimal Inch)

0.2500

Insert Length (mm)

4.30

Coating Process

PVD

Primary Workpiece Material

Steel

Insert Shape Code

W

Corner Radius (Decimal Inch)

0.0315

Insert Thickness (Inch)

1/8

Hole Diameter (Decimal Inch)

0.1060

Chip Breaker

TSW

Multi-Use Application

Turning

Length Range (Decimal Inch)

0.0000 - 0.3000

Multi-use Tool

Yes

Full Radius

No

Tolerance Code

G

Coating Classification

PVD

Wiper Edge

Yes

Insert Size Code

222

Included Angle

80degree

Number of Cutting Edges

3

Series

WXGU-TSW

Hole Diameter (Mm) ( - 0 Decimals)

2.70

Insert Shape

Trigon

Primary Workpiece Material Code

P

Product Overview
Turning Insert: WXGU040308R-TSW AH725, Solid Carbide TiAlN Coated, Right Hand, 4.3 mm Long, 1/4" Inscribed Circle, 1/32" Corner Radius, 80 degree Trigon, Series TurnLine
