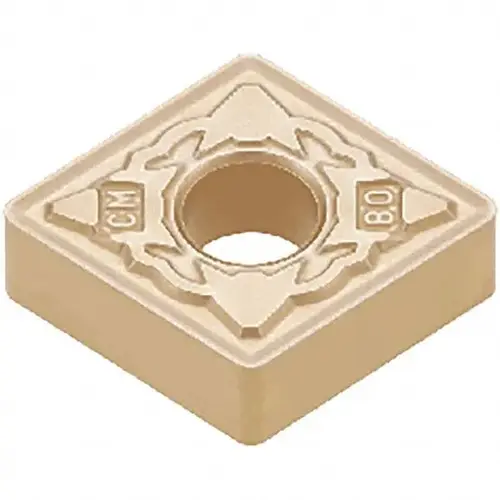

Tungaloy 6733824-XCP10 Turning Insert: CNMG 432 CM T515, Solid Carbide - pack of 10

Item #: 6733824-XCP10 by Tungaloy

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$252.52

/package
SAVE UP TO 25.25
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 26 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Iso Code

CNMG 120408

Proprietary Coating Designation

Multilayer Coating

Corner Radius (mm)

0.80

Inscribed Circle (mm)

12.70

Length Range (Decimal Inch)

0.5000 - 0.6000

Manufacturer Grade

T515

Maximum Depth of Cut (mm)

5.00

Hole Diameter (Mm) ( - 0 Decimals)

5.16

Multi-Use Application

Turning

Inscribed Circle (Inch)

1/2

Relief Angle

0

Hole Diameter (Decimal Inch)

0.2030

Tolerance Code

M

Insert Size Code

432

Insert Style

CNMG

Chip Breaker

CM

Insert Shape Code

C

Full Radius

No

Rake Angle

-15

Clearance Code

N

Insert Shape

Diamond

Corner Radius (Inch)

1/32

Insert Length (mm)

12.90

Inscribed Circle (Decimal Inch)

0.5000

Wiper Edge

No

Insert Hand

Neutral

Rake

Negative

Multi-use Tool

Yes

Maximum Depth of Cut (Decimal Inch)

0.1969

Insert Thickness (Inch)

3/16

Insert Thickness (Decimal Inch)

0.1875

Insert Length (Decimal Inch)

0.5080

Insert Holding Method

Clamp

Coating Classification

CVD

Width (Inch)

1/2

Width (Decimal Inch - 4 Decimals)

0.5

Vendor Drop Ship

N

UNSPSC Code

23242105

Primary Workpiece Material Code

K

Primary Workpiece Material

Cast Iron

Material Grade

K10

Manufacturers Catalog Number

6733824

Corner Radius (Decimal Inch)

0.0315

Coating/Finish

TiCN

Coating Process

CVD

Series

CNMG-CM

Insert Material

Carbide

Included Angle

80

Insert Thickness

4.76

Standards

ANSI

Number of Cutting Edges

4

Cutting Edge Style

Chamfered & Honed

Product Overview
Turning Insert: CNMG 432 CM T515, Solid Carbide TiCN & Al2O3 Coated, Right Hand, 12.9 mm Long, 1/2" Inscribed Circle, 1/32" Corner Radius, 80 degree Diamond, Series TurnLine
