Turning Insert: DCMT32.51 PSF AH8005 - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Tungaloy 6747767-XCP10 Turning Insert: DCMT32.51 PSF AH8005 - pack of 10

Item #: 6747767-XCP10 by Tungaloy

See reviewsSee reviews
See reviews summary
HURRY! Low in stock

$260.22

/package
SAVE UP TO 26.02
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 1 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Chamfered

Number of Cutting Edges

2

Standards

ANSI

Included Angle

55

Insert Material

Carbide

Series

DCMT-PSF

Side Clearance

Positive

Coating Process

PVD

Coating/Finish

TiAlN

Corner Radius (Decimal Inch)

0.0157

Manufacturers Catalog Number

6747767

Material Grade

M01

Primary Workpiece Material

Stainless Steel

Primary Workpiece Material Code

M

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.3750

Width (Inch)

3/8

Coating Classification

PVD

Insert Holding Method

Screw

Insert Length (Decimal Inch)

0.9140

Insert Thickness (Decimal Inch)

0.1563

Insert Thickness (Inch)

5/32

Maximum Depth of Cut (Decimal Inch)

0.0197

Multi-use Tool

Yes

Rake

Positive

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.3750

Corner Radius (Inch)

1/64

Insert Shape

D - Diamond (Rhombic) 55-Deg

Clearance Code

C

Rake Angle

20

Full Radius

No

Insert Shape Code

D

Chip Breaker

PSF

Insert Style

DCMT

Insert Size Code

32.51

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.1730

Relief Angle

7

Inscribed Circle (Inch)

3/8

Multi-Use Application

Turning

Chip Breaker Operation

Finishing

Manufacturer Grade

AH8005

ISO Size Code

11T304

Grade Characteristics

Stainless Steel (M) - High Wear-Resistance

Length Range (Decimal Inch)

0.7000 - 10.0000

ANSI Size Code

32.51

ISO Insert Code

DCMT11T304

Iso Code

DCMT32.51 PSF

ANSI Insert Code

DCMT32.51

Product Overview

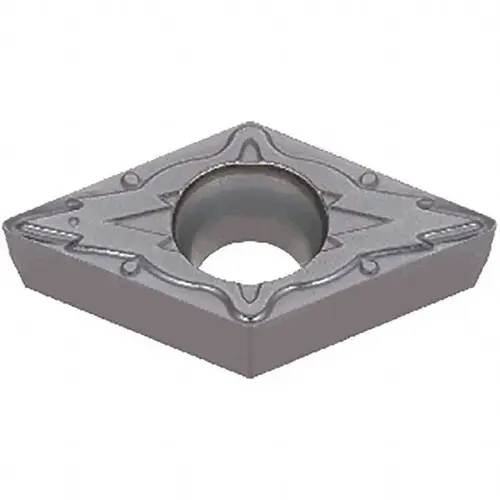

Turning Insert: DCMT32.51 PSF AH8005 Coated, 0.457" Long, 3/8" Inscribed Circle, 0.0157" Corner Radius, 55 degree Diamond, Series DCMT
