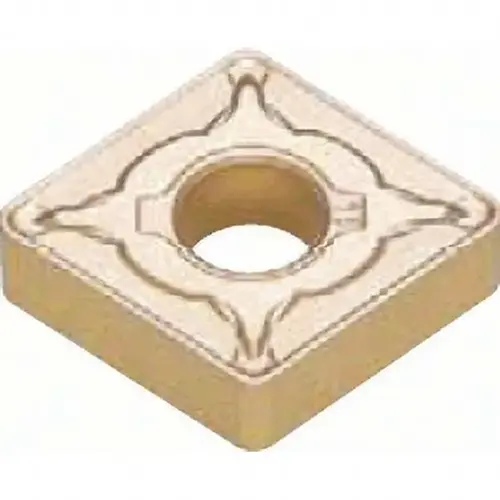

Turning Insert: CNMG 432 THS T9215, Solid Carbide TiCN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Tungaloy 6772204 Turning Insert: CNMG 432 THS T9215, Solid Carbide TiCN

Item #: 6772204 by Tungaloy

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$17.80

/each
SAVE UP TO 1.78
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 30 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Chamfered & Honed

Number of Cutting Edges

4

Standards

ANSI

Included Angle

80degree

Insert Material

Carbide

Series

CNMG-THS

Coating Process

CVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.0315

Manufacturers Catalog Number

6772204

Material Grade

P10

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.5000in

Width (Inch)

1/2in

Coating Classification

CVD

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.5080

Insert Thickness (Decimal Inch)

0.1875

Insert Thickness (Inch)

3/16

Maximum Depth of Cut (Decimal Inch)

0.3307

Multi-use Tool

Yes

Rake

Negative

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.5000

Corner Radius (Inch)

1/32

Insert Shape

Diamond 80

Clearance Code

N

Rake Angle

-20

Full Radius

No

Insert Shape Code

C

Chip Breaker

THS

Insert Style

CNMG

Insert Size Code

432

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.2030

Relief Angle

0

Inscribed Circle (Inch)

1/2

Multi-Use Application

Turning

Manufacturer Grade

T9215

Length Range (Decimal Inch)

0.5000 - 0.6000

Proprietary Coating Designation

Multilayer Coating

Iso Code

CNMG 432 THS

Product Overview
Turning Insert: CNMG 432 THS T9215, Solid Carbide TiN, TiCN, Al2O3 & TiN Coated, Neutral, 0.508" Long, 1/2" Inscribed Circle, 0.0313" Corner Radius, 80 degree Diamond, Series CNMG
