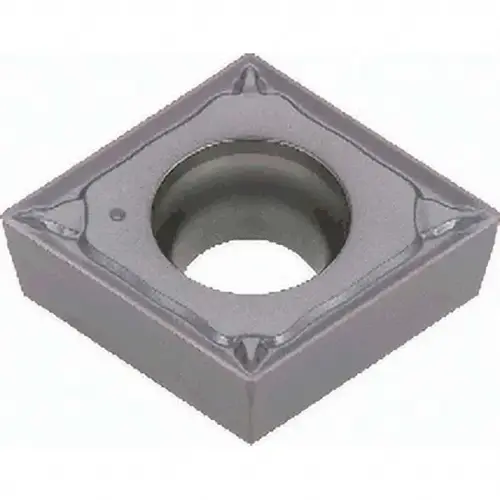

Turning Insert: CCMT120412-PS T9225 - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Tungaloy 6781044-XCP10 Turning Insert: CCMT120412-PS T9225 - pack of 10

Item #: 6781044-XCP10 by Tungaloy

Brand: Tungaloy

See reviewsSee reviews
See reviews summary
In Stock

$344.92

/package
SAVE UP TO 34.49
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 21 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features

Cutting Edge Style

Honed

Number of Cutting Edges

2

Standards

ANSI

Included Angle

80

Insert Material

Carbide

Series

CCMT-PS

Side Clearance

Positive

Coating Process

CVD

Coating/Finish

Titanium

Corner Radius (Decimal Inch)

0.0472

Manufacturers Catalog Number

6781044

Material Grade

P15

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.5000

Width (Inch)

1/2

Coating Classification

CVD

Insert Holding Method

Screw

Insert Length (Decimal Inch)

0.5080

Insert Thickness (Decimal Inch)

0.1875

Insert Thickness (Inch)

3/16

Maximum Depth of Cut (Decimal Inch)

0.0984

Multi-use Tool

Yes

Rake

Positive

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.5000

Corner Radius (Inch)

3/64

Insert Shape

C - Diamond (Rhombic) 80-Deg

Clearance Code

C

Rake Angle

10

Full Radius

No

Insert Shape Code

C

Chip Breaker

PS

Insert Style

CCMT

Insert Size Code

433

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.2170

Relief Angle

7

Inscribed Circle (Inch)

1/2

Multi-Use Application

Turning

Chip Breaker Operation

Finishing

Manufacturer Grade

T9225

ISO Size Code

120412

Grade Characteristics

Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness

Length Range (Decimal Inch)

0.5000 - 0.6000

ANSI Size Code

433

ISO Insert Code

CCMT120412

Proprietary Coating Designation

Multilayer Coating

ANSI Insert Code

CCMT433

Product Overview
Turning Insert: CCMT120412-PS T9225
