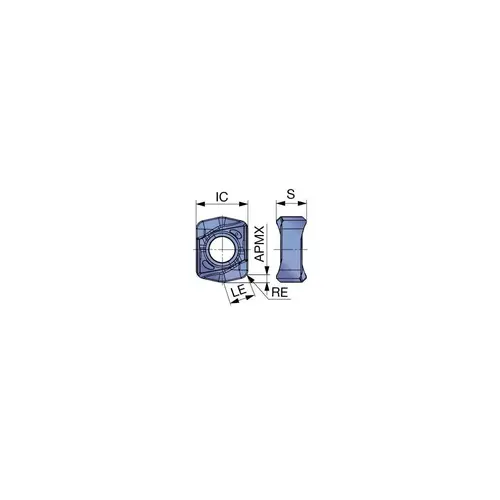

Tungaloy 6782087 Milling Insert: LNMU06X5ZER-MJ AH3225, AH3225, Solid Carbide TiAlN
Item #: 6782087 by Tungaloy
See reviewsSee reviews
Use Code: SAVEBIG2025 for Extra 10% Off
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Cutting Edge Style
Honed
Material Application
Steel
ANSI Code
LNMU06X5ZER-MJ AH3225
Number of Cutting Edges
4
Standards
ISO
Insert Material
Solid Carbide
Series
LNMU
Coating Process
PVD
Coating/Finish
TiAlN
Corner Radius (Decimal Inch)
0.0787
Manufacturers Catalog Number
LNMU06X5ZER-MJ
Material Grade
P20
Primary Workpiece Material
Steel
Primary Workpiece Material Code
P
Thickness (Decimal Inch - 4 Decimals)
0.2760
UNSPSC Code
23291601
Vendor Drop Ship
N
Width (Decimal Inch - 4 Decimals)
0.4720
Coating Classification
PVD
Insert Holding Method
Screw
Maximum Depth of Cut (Decimal Inch)
0.0590
Multi-use Tool
Yes
Rake
Negative
Insert Hand
Right Hand
Inscribed Circle (Decimal Inch)
0.4720
Insert Shape
Rectangle
Chip Breaker
MJ
Insert Style
LNMU
Insert Size Code
06X5
Relief Angle
0.00
Included Angle Degree
90
Cutting Edge Effective Length (Decimal Inch)
0.2360
Manufacturer Grade
AH3225
Inscribed Circle Range (Decimal Inch)
0.4000 to 0.5000
Single or Double Sided Insert
Double
Cutter Series Compatibility
EXN06
Thickness Range (Decimal Inch)
0.2500 to 0.3500
Iso Code
LNMU06X5ZER-MJ AH3225
Product Overview
Milling Insert: LNMU06X5ZER-MJ AH3225, AH3225, Solid Carbide Coated, 0.276" Thick
