Turning Insert: CNMA432 FX105, Ceramic Bright/Uncoated

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

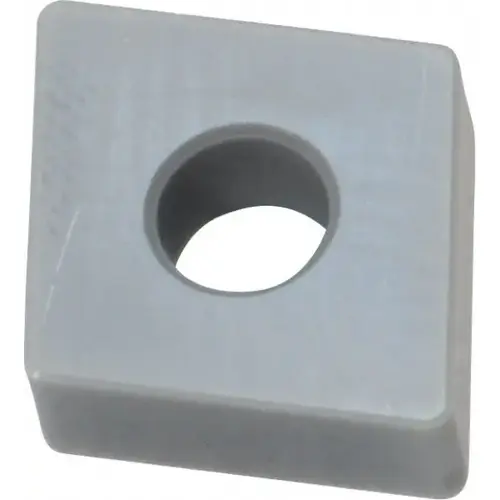

Tungaloy 6801915 Turning Insert: CNMA432 FX105, Ceramic Bright/Uncoated

Item #: 6801915 by Tungaloy

UPC #: 000016847453

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$26.51

/each
SAVE UP TO 2.65
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 172 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Width (Inch)

1/2in

Insert Material

Ceramic

Insert Thickness (Decimal Inch)

0.1875

Vendor Drop Ship

N

Maximum Depth of Cut (Decimal Inch)

0.1181

Iso Code

CNMA432

Width (Decimal Inch - 4 Decimals)

0.5000in

Relief Angle

0

Cutting Edge Style

Honed

Clearance Code

N

Rake

Negative

Material Grade

Silicon Nitride

Insert Length (Decimal Inch)

0.5080

Insert Holding Method

Clamp

Coating/Finish

Bright/Uncoated

Rake Angle

0

UNSPSC Code

23242105

Corner Radius (Inch)

1/32

Insert Style

CNMA

Manufacturers Catalog Number

6801915

Insert Hand

Neutral

Proprietary Coating Designation

Uncoated

Manufacturer Grade

FX105

Inscribed Circle (Inch)

1/2

Standards

ANSI

Inscribed Circle (Decimal Inch)

0.5000

Coating Process

Uncoated

Primary Workpiece Material

Cast Iron

Insert Shape Code

C

Corner Radius (Decimal Inch)

0.0315

Insert Thickness (Inch)

3/16

Hole Diameter (Decimal Inch)

0.2030

Chip Breaker

Flat Top

Multi-Use Application

Turning

Length Range (Decimal Inch)

0.5000 - 0.6000

Multi-use Tool

Yes

Full Radius

No

Tolerance Code

M

Coating Classification

Uncoated

Wiper Edge

No

Insert Size Code

432

Included Angle

80degree

Number of Cutting Edges

4

Series

CNM/GA

Insert Shape

Diamond 80

Primary Workpiece Material Code

K

Product Overview
Turning Insert: CNMA432 FX105, Ceramic Uncoated, 0.508" Long, 1/2" Inscribed Circle, 1/32" Corner Radius, 80 degree Diamond, Series CNMA
