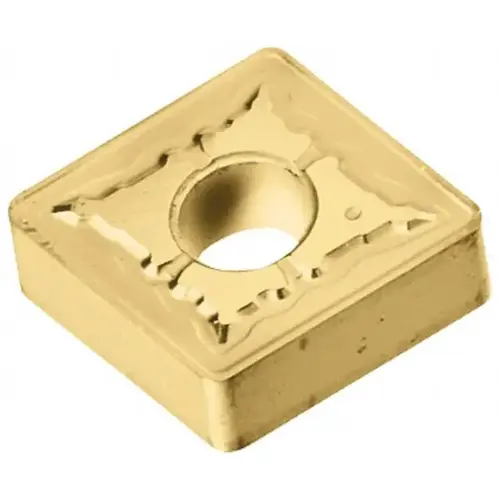

Turning Insert: CNMG644TH AH120, Solid Carbide - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Tungaloy 6802314-XCP10 Turning Insert: CNMG644TH AH120, Solid Carbide - pack of 10

Item #: 6802314-XCP10 by Tungaloy

See reviewsSee reviews
See reviews summary
HURRY! Low in stock

$449.82

/package
SAVE UP TO 44.98
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 1 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Width (Inch)

3/4in

Insert Material

Carbide

Insert Thickness (Decimal Inch)

0.2500

Vendor Drop Ship

N

Maximum Depth of Cut (Decimal Inch)

0.2362

Iso Code

CNMG 644TH

Width (Decimal Inch - 4 Decimals)

0.7500in

Relief Angle

0

Cutting Edge Style

Chamfered & Honed

Clearance Code

N

Rake

Negative

Material Grade

P15

Insert Length (Decimal Inch)

0.7600

Insert Holding Method

Clamp

Coating/Finish

TiAlN

Rake Angle

-20

UNSPSC Code

23242105

Corner Radius (Inch)

1/16

Insert Style

CNMG

Manufacturers Catalog Number

6802314

Insert Hand

Neutral

Manufacturer Grade

AH120

Inscribed Circle (Inch)

3/4

Standards

ANSI

Inscribed Circle (Decimal Inch)

0.7500

Coating Process

PVD

Primary Workpiece Material

Steel

Insert Shape Code

C

Corner Radius (Decimal Inch)

0.0629

Insert Thickness (Inch)

1/4

Hole Diameter (Decimal Inch)

0.3120

Chip Breaker

TH

Multi-Use Application

Turning

Length Range (Decimal Inch)

0.7000 - 10.0000

Multi-use Tool

Yes

Full Radius

No

Tolerance Code

M

Coating Classification

PVD

Wiper Edge

No

Insert Size Code

644

Included Angle

80degree

Number of Cutting Edges

4

Series

CNMG-TH

Insert Shape

Diamond 80

Primary Workpiece Material Code

P

Product Overview
Turning Insert: CNMG644TH AH120, Solid Carbide TiAlN Coated, 0.76" Long, 3/4" Inscribed Circle, 1/16" Corner Radius, 80 degree Diamond, Series CNMG
