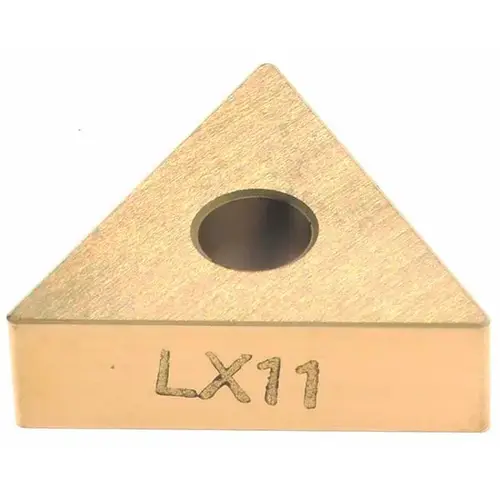

Tungaloy 6808083 Turning Insert: TNGA331 LX11, Ceramic TiN
Item #: 6808083 by Tungaloy
UPC #: 000016832343
See reviewsSee reviews
Use Code: SAVEBIG2025 for Extra 10% Off
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Cutting Edge Style
Honed
Number of Cutting Edges
6
Standards
ANSI
Included Angle
60
Insert Material
Ceramic
Series
TNM/GA
Side Clearance
Negative
Coating Process
PVD
Coating/Finish
TiN
Corner Radius (Decimal Inch)
0.0157
Manufacturers Catalog Number
6808083
Material Grade
Alumina TiC
Primary Workpiece Material
Hard Material
Primary Workpiece Material Code
H
UNSPSC Code
23242105
Vendor Drop Ship
N
Width (Decimal Inch - 4 Decimals)
0.6500
Coating Classification
PVD
Insert Holding Method
Clamp
Insert Length (Decimal Inch)
0.6500
Insert Thickness (Decimal Inch)
0.1875
Insert Thickness (Inch)
3/16
Maximum Depth of Cut (Decimal Inch)
0.0787
Multi-use Tool
Yes
Rake
Negative
Insert Hand
Neutral
Wiper Edge
No
Inscribed Circle (Decimal Inch)
0.3750
Corner Radius (Inch)
1/64
Insert Shape
T - Triangle
Clearance Code
N
Rake Angle
0
Full Radius
No
Insert Shape Code
T
Chip Breaker
Flat Top
Insert Style
TNGA
Insert Size Code
331
Tolerance Code
G
Hole Diameter (Decimal Inch)
0.1500
Relief Angle
0
Inscribed Circle (Inch)
3/8
Multi-Use Application
Turning
Chip Breaker Operation
Finishing
Manufacturer Grade
LX11
ISO Size Code
160404
Length Range (Decimal Inch)
0.6500 - 0.7000
ANSI Size Code
331
ISO Insert Code
TNGA160404
Proprietary Coating Designation
TiN
Iso Code
TNGA331
ANSI Insert Code
TNGA331
Product Overview
Turning Insert: TNGA331 LX11, Ceramic TiN Coated, 0.65" Long, 3/8" Inscribed Circle, 1/64" Corner Radius, 60 degree Triangle, Series TNGA
