Turning Insert: TPGN321 LX11, Ceramic - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

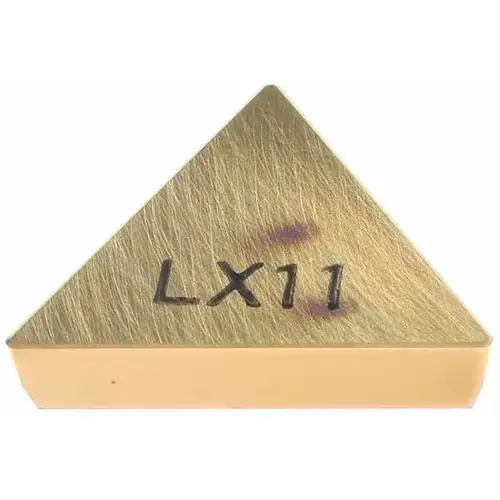

Tungaloy 6808838-XCP10 Turning Insert: TPGN321 LX11, Ceramic - pack of 10

Item #: 6808838-XCP10 by Tungaloy

See reviewsSee reviews
See reviews summary
In Stock

$288.75

/package
SAVE UP TO 28.88
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 5 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Insert Material

Ceramic

Insert Thickness (Decimal Inch)

0.1250

Side Clearance

Positive

Vendor Drop Ship

N

Maximum Depth of Cut (Decimal Inch)

0.0787

ISO Insert Code

TPGN160304

Iso Code

TPGN321

Width (Decimal Inch - 4 Decimals)

0.6500

Relief Angle

11

Cutting Edge Style

Honed

Clearance Code

P

Rake

Positive

Material Grade

Alumina TiC

ANSI Insert Code

TPGN321

Insert Length (Decimal Inch)

0.6500

Insert Holding Method

Clamp

Coating/Finish

TiN

Rake Angle

0

UNSPSC Code

23242105

Corner Radius (Inch)

1/64

Insert Style

TPGN

Manufacturers Catalog Number

6808838

ANSI Size Code

321

Insert Hand

Neutral

Proprietary Coating Designation

TiN

Manufacturer Grade

LX11

Inscribed Circle (Inch)

3/8

Standards

ANSI

Inscribed Circle (Decimal Inch)

0.3750

Coating Process

PVD

Primary Workpiece Material

Hard Material

Insert Shape Code

T

Corner Radius (Decimal Inch)

0.0157

Insert Thickness (Inch)

1/8

Chip Breaker

Flat Top

Multi-Use Application

Turning

Length Range (Decimal Inch)

0.6500 - 0.7000

Multi-use Tool

Yes

Full Radius

No

Tolerance Code

G

Coating Classification

PVD

ISO Size Code

160304

Wiper Edge

No

Insert Size Code

321

Included Angle

60

Number of Cutting Edges

3

Series

TPM/GN

Insert Shape

T - Triangle

Chip Breaker Operation

Finishing

Primary Workpiece Material Code

H

Product Overview
Turning Insert: TPGN321 LX11, Ceramic TiN Coated, 0.65" Long, 3/8" Inscribed Circle, 1/64" Corner Radius, 60 degree Triangle, Series TPGN
