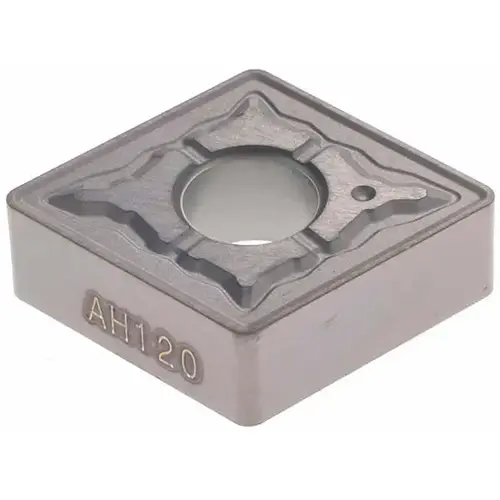

Tungaloy 6811624 Turning Insert: CNMG432TH AH120, Solid Carbide TiAlN

Item #: 6811624 by Tungaloy

UPC #: 000016851634

See reviewsSee reviews
See reviews summary
In Stock

$23.33

/each
SAVE UP TO 2.33
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 776 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Width (Inch)

1/2

Insert Material

Carbide

Insert Thickness (Decimal Inch)

0.1875

Side Clearance

Negative

Vendor Drop Ship

N

Maximum Depth of Cut (Decimal Inch)

0.2362

ISO Insert Code

CNMG120408

Iso Code

CNMG 432 TH

Grade Characteristics

Steel (P) - Moderate Wear-Resistance and Toughness to High Toughness

Width (Decimal Inch - 4 Decimals)

0.5000

Relief Angle

0

Cutting Edge Style

Chamfered

Clearance Code

N

Rake

Negative

Material Grade

P15

ANSI Insert Code

CNMG432

Insert Length (Decimal Inch)

0.5080

Insert Holding Method

Clamp

Coating/Finish

TiAlN

Rake Angle

-20

UNSPSC Code

23242105

Corner Radius (Inch)

1/32

Insert Style

CNMG

Manufacturers Catalog Number

6811624

ANSI Size Code

432

Insert Hand

Neutral

Manufacturer Grade

AH120

Inscribed Circle (Inch)

1/2

Standards

ANSI

Inscribed Circle (Decimal Inch)

0.5000

Coating Process

PVD

Primary Workpiece Material

Steel

Insert Shape Code

C

Corner Radius (Decimal Inch)

0.0315

Insert Thickness (Inch)

3/16

Hole Diameter (Decimal Inch)

0.2030

Chip Breaker

TH

Multi-Use Application

Turning

Length Range (Decimal Inch)

0.5000 - 0.6000

Multi-use Tool

Yes

Full Radius

No

Tolerance Code

M

Coating Classification

PVD

ISO Size Code

120408

Wiper Edge

No

Insert Size Code

432

Included Angle

80

Number of Cutting Edges

4

Series

CNMG-TH

Insert Shape

C - Diamond (Rhombic) 80-Deg

Chip Breaker Operation

Roughing

Primary Workpiece Material Code

P

Product Overview
Turning Insert: CNMG432TH AH120, Solid Carbide TiAlN Coated, 0.508" Long, 1/2" Inscribed Circle, 1/32" Corner Radius, 80 degree Diamond, Series CNMG
