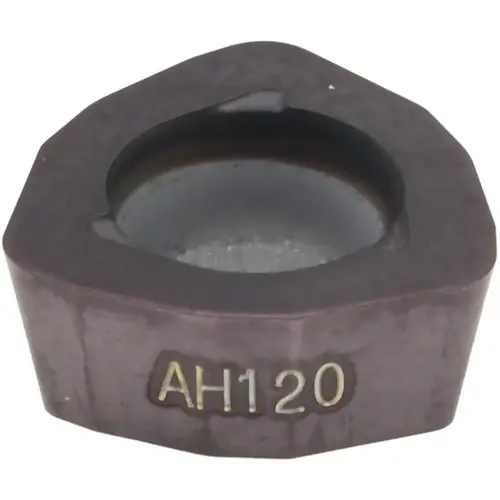

Tungaloy 6821763 Milling Insert: WPMT06X415ZPR-MH, AH120, Solid Carbide TiAlN

Item #: 6821763 by Tungaloy

UPC #: 000016881266

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$28.10

/each
SAVE UP TO 2.81
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 60 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Honed

Material Application

Steel

ANSI Code

WPMT06X415ZPR-MH AH120

Number of Cutting Edges

3

Standards

ISO

Thickness (mm)

4.20

Insert Material

Solid Carbide

Series

WPMT

Coating Process

PVD

Coating/Finish

TiAlN

Corner Radius (Decimal Inch)

0.0590

Length (Decimal Inch - 4 Decimals)

0.4720

Manufacturers Catalog Number

WPMT06X415ZPR-MH

Material Grade

P15

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

Thickness (Decimal Inch - 4 Decimals)

0.1650

UNSPSC Code

23291601

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.4720

Coating Classification

PVD

Insert Holding Method

Screw

Maximum Depth of Cut (Decimal Inch)

0.0590

Multi-use Tool

Yes

Rake

Positive

Insert Hand

Right Hand

Inscribed Circle (Decimal Inch)

0.3750

Insert Shape

Trigon

Chip Breaker

MH

Insert Style

WPMT

Insert Size Code

06X415

Relief Angle

11.00

Included Angle Degree

80

Inscribed Circle (Inch)

3/8

Maximum Depth of Cut (mm)

1.50

Manufacturer Grade

AH120

Inscribed Circle Range (Decimal Inch)

0.3500 to 0.4000

Single or Double Sided Insert

Single

Cutter Series Compatibility

EXP05/06/08/09

Length Range (Decimal Inch)

0.4500 to 0.5000

Thickness Range (Decimal Inch)

0.1500 to 0.1750

Corner Radius (mm)

1.50

Iso Code

WPMT06X415ZPR-MH AH120

Product Overview
Milling Insert: WPMT06X415ZPR-MH, AH120, Solid Carbide Coated, 4.2 mm Thick
