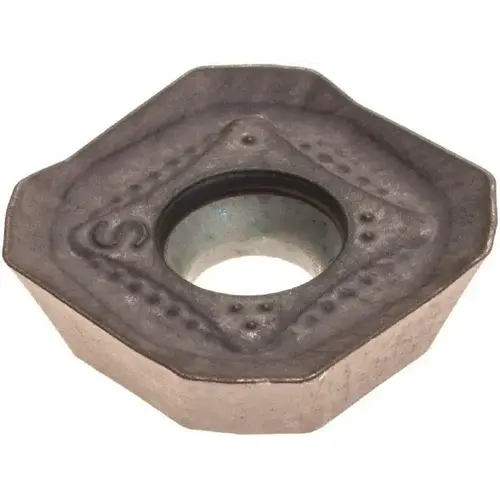

Tungaloy 6846118 Milling Insert: AH140, Solid Carbide TiAlN

Item #: 6846118 by Tungaloy

See reviewsSee reviews
See reviews summary
HURRY! Low in stock

$22.59

/each
SAVE UP TO 2.26
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 2 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Iso Code

SWMT13T3AFPR-MS AH140

Thickness Range (Decimal Inch)

0.1500 to 0.1750

Length Range (Decimal Inch)

0.5000 to 0.6000

Cutter Series Compatibility

TAW13

Single or Double Sided Insert

Single

Inscribed Circle Range (Decimal Inch)

0.5000 to 0.6000

Manufacturer Grade

AH140

Maximum Depth of Cut (mm)

4.00

Included Angle Degree

90

Relief Angle

18.50

Insert Size Code

13T3

Insert Style

SWMT

Chip Breaker

MS

Insert Shape

Square

Inscribed Circle (Decimal Inch)

0.5550

Insert Hand

Right Hand

Rake

Positive

Multi-use Tool

No

Maximum Depth of Cut (Decimal Inch)

0.1570

Insert Holding Method

Screw

Coating Classification

PVD

Width (mm - 2 Decimals)

14.10

Width (Decimal Inch - 4 Decimals)

0.5550

Vendor Drop Ship

N

Thickness (Inch)

5/32

Thickness (Decimal Inch - 4 Decimals)

0.1570

Primary Workpiece Material Code

P

Primary Workpiece Material

Steel

Material Grade

M30

Manufacturers Catalog Number

SWMT13T3AFPR-MS

Length (Decimal Inch - 4 Decimals)

0.5550

Corner Radius (Decimal Inch)

0.0393

Coating/Finish

TiAlN

Coating Process

PVD

Series

SWMT

Insert Material

Solid Carbide

Standards

ISO

Number of Cutting Edges

4

ANSI Code

SWMT13T3AFPR-MS AH140

Material Application

Steel

Cutting Edge Style

Honed

Product Overview
Milling Insert: AH140, Solid Carbide Coated, 14.1 mm Wide
