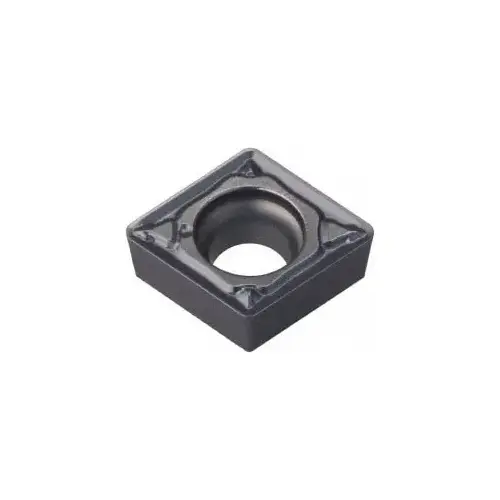

Tungaloy 6856704 Turning Insert: CPMT21.52PM AH725 TiAlN
Item #: 6856704 by Tungaloy
See reviewsSee reviews
Use Code: SAVEBIG2025 for Extra 10% Off
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Cutting Edge Style
Chamfered & Honed
Number of Cutting Edges
2
Standards
ANSI
Included Angle
80degree
Insert Material
Carbide
Series
CPMT-PM
Coating Process
PVD
Coating/Finish
TiAlN
Corner Radius (Decimal Inch)
0.0315
Manufacturers Catalog Number
6856704
Material Grade
P15
Primary Workpiece Material
Steel
Primary Workpiece Material Code
P
UNSPSC Code
23242105
Vendor Drop Ship
N
Width (Decimal Inch - 4 Decimals)
0.2500in
Width (Inch)
1/4in
Coating Classification
PVD
Insert Holding Method
Screw
Insert Length (Decimal Inch)
0.2560
Insert Thickness (Decimal Inch)
0.0938
Insert Thickness (Inch)
3/32
Maximum Depth of Cut (Decimal Inch)
0.1181
Multi-use Tool
Yes
Rake
Positive
Insert Hand
Neutral
Wiper Edge
No
Inscribed Circle (Decimal Inch)
0.2500
Corner Radius (Inch)
1/32
Insert Shape
Diamond 80
Clearance Code
P
Rake Angle
8
Full Radius
No
Insert Shape Code
C
Chip Breaker
PM
Insert Style
CPMT
Insert Size Code
21.52
Tolerance Code
M
Hole Diameter (Decimal Inch)
0.1100
Relief Angle
11
Inscribed Circle (Inch)
1/4
Multi-Use Application
Turning
Manufacturer Grade
AH725
Length Range (Decimal Inch)
0.0000 - 0.3000
Product Overview
Turning Insert: CPMT21.52PM AH725
