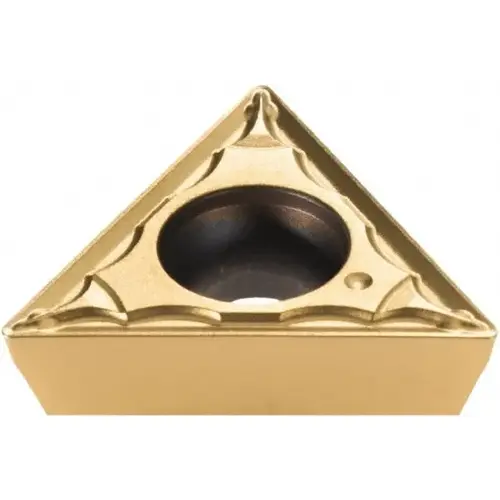

Turning Insert: TPMT167304PS GT9530, Cermet - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Tungaloy 6998377-XCP10 Turning Insert: TPMT167304PS GT9530, Cermet - pack of 10

Item #: 6998377-XCP10 by Tungaloy

See reviewsSee reviews
See reviews summary

The item is currently out of stock and it may or may not be restocked
OUT OF STOCK

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Honed

Number of Cutting Edges

3

Standards

ANSI

Insert Thickness

3.97

Included Angle

60

Insert Material

Cermet

Series

TPMT-PS

Side Clearance

Positive

Coating Process

PVD

Coating/Finish

TiCNO

Corner Radius (Decimal Inch)

0.0157

Manufacturers Catalog Number

6998377

Material Grade

P10

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.6500

Coating Classification

PVD

Insert Holding Method

Screw

Insert Length (Decimal Inch)

0.6500

Insert Thickness (Decimal Inch)

0.1563

Insert Thickness (Inch)

5/32

Maximum Depth of Cut (Decimal Inch)

0.0984

Multi-use Tool

Yes

Rake

Positive

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.3750

Insert Length (mm)

16.50

Corner Radius (Inch)

1/64

Insert Shape

T - Triangle

Clearance Code

P

Rake Angle

10

Full Radius

No

Insert Shape Code

T

Chip Breaker

PS

Insert Style

TPMT

Insert Size Code

32.51

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.1730

Relief Angle

11

Inscribed Circle (Inch)

3/8

Multi-Use Application

Turning

Hole Diameter (Mm) ( - 0 Decimals)

4.40

Maximum Depth of Cut (mm)

2.50

Chip Breaker Operation

Finishing

Manufacturer Grade

GT9530

ISO Size Code

16T304

Grade Characteristics

Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness

Length Range (Decimal Inch)

0.6500 - 0.7000

ANSI Size Code

32.51

Inscribed Circle (mm)

9.53

ISO Insert Code

TPMT16T304

Corner Radius (mm)

0.40

Iso Code

TPMT167304PS

ANSI Insert Code

TPMT32.51

Product Overview
Turning Insert: TPMT167304PS GT9530, Cermet Coated, 16.5 mm Long, 9.53 mm Inscribed Circle, 0.4 mm Corner Radius, 60 degree Triangle, Series TPMT
