30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Key it Yourself: Lock is rekeyable by using the included learn tool in less than 30 seconds without removing the lock from the door.
- Features a fully adjustable latch to fit all standard door preparations (2-3/8" to 2-3/4" backsets)
- ANSI/BHMA Grade 2 Security
- Fully reversible Lever – Fits both right handed and left handed doors
- Includes Standard Round Corner Strike Plate Part Number 83796 (Strike Plate is on Door Jamb). For Square Corner Strike Plate See Product: Kwikset 83437. For a T-Strike Plate See: Kwikset 83028.
- A reversible lever with a stylish wave silhouette design
- Both knobs locked or unlocked by key outside or turn button inside
- There is an optional kit available for 2-1/4" thick doors, see product ID 81714.
- Some images shown without SmartKey cylinder
Theme
Transitional
Handle Material
Metal
Handing
Left, Reversible, Right
Product Class
Residential
Backset
2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4"
Handle Style
Lever
Latch Faceplate
Round Corner
Shape
Wave
Function
Single Cylinder
Rose Diameter
2.625
Projection
1.875
Lever Length
4.25
Door Thickness
1-1/2", 1-3/4", 1-3/8", 1-5/8"
ADA
No
ANSI Certification
A156.2
BHMA Certification
Grade 2
Concealed Screws
Yes
Cross Bore
2-1/8"
Cylinder
SmartKey 5 Pin
SmartKey
Yes
Rosette Shape
Round
Panic Proof
No
Locking Mechanism
Thumbturn
Edge Bore
1"
Series
Signature Series
Collection
Tustin
Finish
Bright Chrome
Dimension
4-2/9" Lever Length; 2-3/5" Projection
Material
Zinc
Keyway
Kwikset SmartKey
Strike
Round Corner Full Lip Strike
Manufacturer Warranty
Limited Lifetime Mechanical and Finish Warranty
Rose/Escutcheon Design
Tustin Rose
Door Range
1-3/8" to 1-3/4"
Hazardous Material
No
Strike Dimension
2-1/4" x 1-5/8" x 1-1/8" Lip
Cross Bore Size
2-1/8" Bore
Finish code
US26
Latch Faceplate Dimension
1" x 2-1/4" Faceplates and 1" Round Collar
Lever Knob Design
Tustin Lever
No of inners
1
No Of Pins
5 Pin Cylinder
Handle Type
Lever
Features
SmartKey
Product Overview

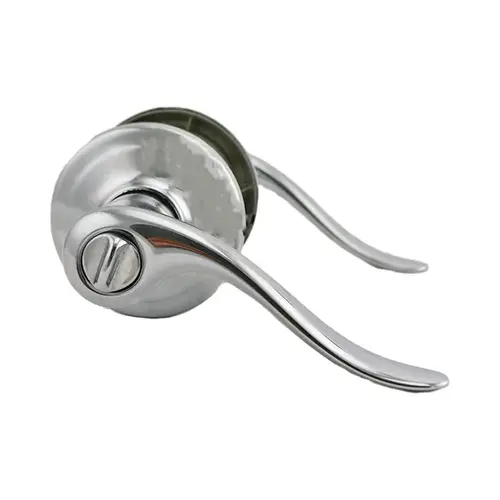

Kwikset KWI-740TNL-S Tustin Lever Entry Door Lock SmartKey with 6AL Latch and RCS Strike
Featuring SmartKey Security , this lock protects against advanced break-in techniques and allows you to re-key your lock yourself in just seconds. Compatible with Kwikset (KW1) keyway or (SC1) keyway options. This product is designed to fit both right-handed and left-handed doors, making it a universal solution for your home. Plus, with 3 interchangeable faceplates - round corner, square corner, and drive-in collar - you'll have the flexibility to choose the one that fits your door best. This product is ANSI/BHMA grade 2 certified, meaning it has been tested and certified for durability and performance.
PRODUCT FEATURES
- Designer style and superior security with this Kwikset Signature Series product
- For use on exterior doors where keyed entry and security is needed
- Featuring SmartKey Security , which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds.
- SmartKey Security re-key technology is compatible with Kwikset (KW1) keyway or (SC1) keyway options
- Comes with 2 keys
- Latch has 2 interchangeable faceplates
- round corner and square corner
- ANSI/BHMA grade 2 certified
- Latch has adjustable backset 2-3/8" to 2-3/4" to fit all standard door preparations
- Locking mechanism functions with turn piece on the interior of the lock
- Fully reversible lever, can be installed on both right handed and left handed doors
- Easily installs in minutes with just a screwdriver
- Lifetime mechanical and finish warranty
- Microban Antimicrobial product protection keeps door hardware 99.9% cleaner than unprotected surfaces
Kwikset KWI-740TNL-S Tustin Lever Entry Door Lock SmartKey with 6AL Latch and RCS Strike
