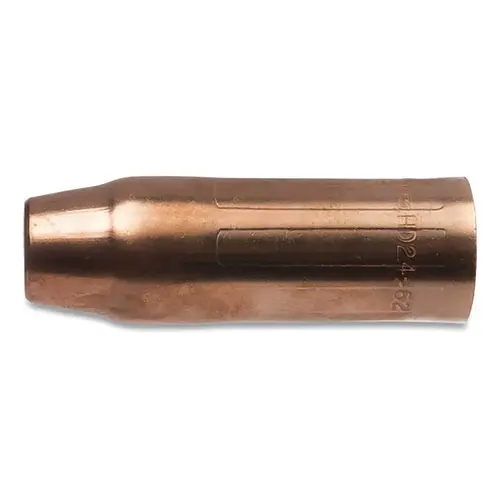

TWECO 1240-1202 Heavy Duty Nozzles, 1/8" Tip Recess, 3/4", For Part Nos. HD54-16,HD54-14,HD54-EL
Item #: 1240-1202 by TWECO
See reviewsSee reviews
Use Code: SAVEBIG2025 for Extra 10% Off
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Material
122 DHP Copper Alloy
Used with
Part No. HD54-16 (Stock No. 1540-1136); Part No. H
Bore Size
3/4 in
Nom. Width
7/8 in
Nom. Length
3.21 in
Overall Length [Nom]
3.21 in
Nozzle Style
1/8" Tip Recess
Product Overview
Used in heavy duty welding application up to 450 amperes
Nozzle housing is cut and Formed from 122 DHP copper alloy tubing
Nozzle insert is machined from a solid brass allow and is crimped in place to allow the nozzle to slide over a metal spring which is part of the gas diffuser
Nozzle insulator is made from G7 silicone material, providing the electrical insulation needed from the gas diffuser
Part No
rolled stamped on the outside surface for easy identification
3-piece design does not require an additional insulator.
Nozzle housing is cut and Formed from 122 DHP copper alloy tubing
Nozzle insert is machined from a solid brass allow and is crimped in place to allow the nozzle to slide over a metal spring which is part of the gas diffuser
Nozzle insulator is made from G7 silicone material, providing the electrical insulation needed from the gas diffuser
Part No
rolled stamped on the outside surface for easy identification
3-piece design does not require an additional insulator.
