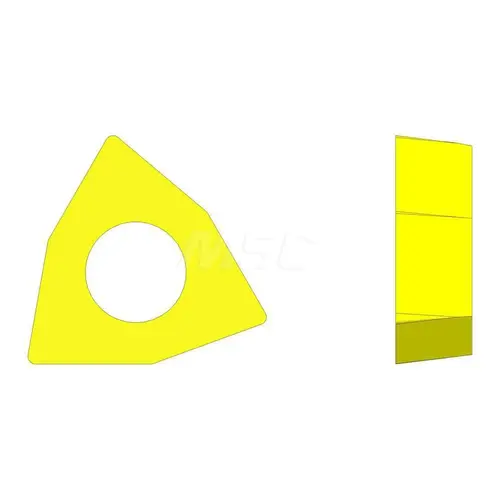

Turning Insert: WCMT 32.51 UD52, Solid Carbide TiAlN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Ultra-Dex 913-000-588 Turning Insert: WCMT 32.51 UD52, Solid Carbide TiAlN

Item #: 913-000-588 by Ultra-Dex

See reviewsSee reviews
See reviews summary
In Stock

$30.95

/each
SAVE UP TO 3.09

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 20 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Number of Cutting Edges

3

Standards

ANSI

Included Angle

80

Insert Material

Carbide

Series

WCMT

Side Clearance

Positive

Coating/Finish

TiAlN

Corner Radius (Decimal Inch)

0.0150

Manufacturers Catalog Number

913-000-588

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.5140

Insert Holding Method

Screw

Insert Length (Decimal Inch)

0.5140

Insert Thickness (Decimal Inch)

0.1560

Insert Thickness (Inch)

5/32

Maximum Depth of Cut (Decimal Inch)

0.0856

Multi-use Tool

Yes

Rake

Positive

Secondary Workpiece Material

Stainless Steel

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.3750

Corner Radius (Inch)

1/64

Insert Shape

W - Trigon 80-Deg

Clearance Code

C

Full Radius

No

Insert Shape Code

W

Chip Breaker

LX6

Secondary Workpiece Material Code

M

Insert Style

WCMT

Insert Size Code

32.51

Tolerance Code

M

Relief Angle

7

Inscribed Circle (Inch)

3/8

Multi-Use Application

Turning

Manufacturer Grade

UD52

ISO Size Code

06T304

Length Range (Decimal Inch)

0.5000 - 0.6000

ANSI Size Code

32.51

ISO Insert Code

WCMT06T304

ANSI Insert Code

WCMT32.51

Product Overview
Turning Insert: WCMT 32.51 UD52, Solid Carbide TiAlN Coated, 3/8" Inscribed Circle, 1/64" Corner Radius, 80 degree Trigon, Series WCMT
