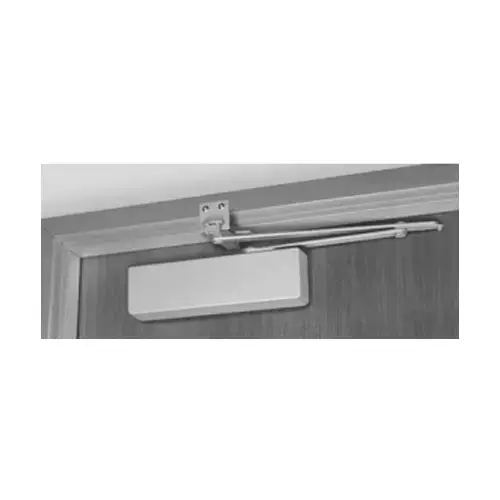

Norton UNI7500690Click To Copy Unitrol Door Control Adjustable Surface Mount Door Closer Aluminum Finish Dark Bronze

The Norton 7500 Series is a robust, multi-sized surface closer engineered for superior performance and long-term reliability. Designed for use on both interior and exterior doors, the Norton 7500 door closer is ideal for high-security and institutional facilities that demand consistent, dependable operation.

As part of the Norton Rixson 7500 line, this versatile closer includes multiple configuration options such as the Norton 7500 parallel arm closer and Norton 7500 hold open arm, making it adaptable to a wide range of installation requirements. The Norton 7500 closer offers precision control and a durable design, ensuring reliable function even in demanding environments.

Whether you refer to it as the Norton 7500 series closer, Norton 7500 series door closer, 7500 Norton closer, or simply the Norton 7500, this surface-mounted closer stands out for its flexibility, strength, and proven performance.

• Cast aluminum body
• Adjustable, heavy-duty spring sizes 1-6
• Tri-packed
• Exceeds 25 million cycles
• Larger 1-1/2" (38mm) diameter piston
• Non-handed
• Projection: 2-1/8"
• Interior or exterior doors
• Staked valves
• All standard arm applications allow doors to swing 180, conditions permitting
• Hold open, heavy-duty, and low profile arms available
• Slide track - push or pull side mounting
• Standard, separate and independent latch, sweep, and backcheck intensity valves
• Retrofit plates, drop plates, back plates, mounting plates, brackets available
• Available fasteners: sex nuts, thru-bolt grommet nuts, Torx

• Constructed with robust materials and internal components
• One package covers regular, top jamb, and parallel arm mounting
• Stringent testing supports a long-life of reliability
• Low profile projection provides clean aesthetic
• Arm configurations meet broad range of applications
• Staking limits ability to accidentally back out the valve while adjusting closer
• Extensive offering of accessories to assist with the most difficult applications
• Proprietary lubricate delivers optimal performance and efficiency

• Closer Type:Surface
• Maximum Door Weight:250 lbs
• Traffic Rating:High Traffic
• Warranty:30-year limited warranty

• ANSI/BHMA A117.1
• ANSI/BHMA A156.4, Grade 1
• Americans with Disabilities Act (ADA) Compliant
• Environmental Product Declaration (EPD)
• Health Product Declaration (HPD)
• UL 10C Positive Pressure up to 3 hours
• UL-cUL Listed

Norton 7500 Series Aluminum Door Closer
Norton Rixson 7500 Series Door Closer 7500ST, PS7500ST, 7700ST, PS7700ST, Non-Hold Open and Hold Open, Push or Pull Slide Track Installation Instructions
Norton Rixson 7500 Series Door Closer 7540ST, 7740ST Push or Pull, Non-Hold Open Slide Track Installation Instructions
Norton Rixson 7500 Series Door Closer 7540STH, 7740STH, Slide Track, Push or Pull, Hold Open Installation Instructions
Norton Rixson 7500 Series Door Closer, 7540STH, 7740STH, Slide Track, Push or Pull, Hold Open Installation Instructions
Norton Rixson 7500 Series Door Closer, 7700, Regular, Top Jamb, or Parallel Arms, Non-Hold Open Installation Instructions
Norton Rixson 7500 Series Door Closer, Tri-Style (Regular, Parallel, Top Jamb), Non-Hold Open Installation Instructions
Norton Rixson 7500 Series Door Closer, 7500SS, Corrosion Resistant, Non-Hold Open Installation Instructions
Norton Rixson 7500 Series Door Closer, 7580, Low Profile Arm, Non-Hold Open Installation Instructions
Norton Rixson 7500 Series Door Closer, S7500, Regular Arm, Non-Hold Open Installation Instructions
Norton Rixson 7500 Series Door Closer, JS7500, Top Jamb, Non-Hold Open Installation Instructions
Norton Rixson 7500 Series Door Closer, P7500, Parallel, Non-Hold Open Installation Instructions
Norton Rixson 7500 Series Door Closer, UNI7500, UNI7700, Unitrol Parallel Arm, Non-Hold Open or Hold Open Installation Instructions
Norton Rixson 7500 Series Door Closer, UNIJ7500, UNIJ7700, Unitrol Top Jamb Arm, Non-Hold Open or Hold Open Installation Instructions
Norton Rixson 7500 Series Door Closer, RP75-4010 Adapter Plate, Regular and Parallel Arm to Retrofit a Norton Rixson 7500 for an LCN 4010 Intstallation Instructions
Norton Rixson 7500 Series Door Closer, RP75-4040 Adapter Plate, Regular or Parallel Arm Retrofit to replace LCN 4040 Installation Instructions
Norton Rixson 7500 Series Door Closer, RP75-M2020 Adapter Plate, Regular or Parallel Arm Retrofit to replace Rixson M2020 Installation Instructions
Norton Rixson 7500 Series Door Closer, CLP7500, CLP7700, CloserPlus, Parallel Rigid, Non-Hold Open or Hold Open Installation Instructions
Norton Rixson 7500 Series Door Closer, CLP7500R, CLP7700R, CloserPlus Ramp, Hold Open Installation Instructions
Norton Rixson 7500 Series Door Closer, Tri-Style (Regular, Parallel, Top Jamb), Hold Open Installation Instructions
