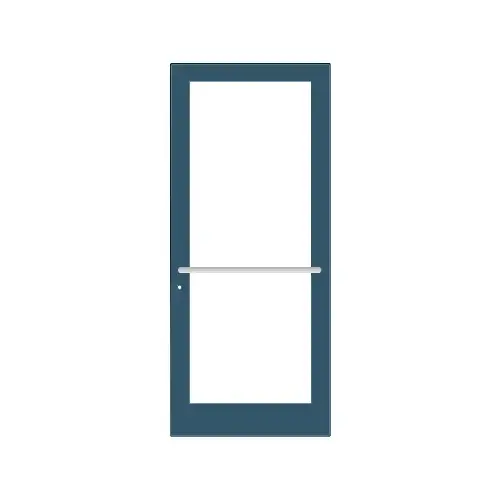

CRL-U.S. Aluminum DC41771 Custom KYNAR Paint Custom Single Series 400 Medium Stile Center Pivot Entrance Door for Overhead Concealed Door Closer

  • Includes Standard Push/Pull, MS Hookbolt Lock, and Two Keyed-Alike Cylinders
  • Accommodates 1/4" (6 mm) Tempered Glass With the Option for 1" (25 mm) Tempered Insulating Unit (Glass Not Included)
  • 6-1/2" (165 mm) Bottom Rail
  • Custom Fabricated to Accept Optional Hardware Applications
See Full Product Description
SALE

$477.35 /each

Qty

In stock
Special Order

Usually ships in 1-2 weeks*

SALE
+
In stock Special Order

Usually ships in 1-2 weeks*

Have a Question?

Chat with our Expert


Similar Products


Description

  • Includes Standard Push/Pull, MS Hookbolt Lock, and Two Keyed-Alike Cylinders
  • Accommodates 1/4" (6 mm) Tempered Glass With the Option for 1" (25 mm) Tempered Insulating Unit (Glass Not Included)
  • 6-1/2" (165 mm) Bottom Rail
  • Custom Fabricated to Accept Optional Hardware Applications

  • Product Description
  • Technical Details 1
  • Product Reviews 1
  • Product Q&A 1
  • Large Order Quote
  • Shipping / Return Policy

Product Description

Maximum Door Opening Size

48" (1.22 m) x 96" (2.44 m)

Minimum Door Opening Size

24" (610 mm) x 48" (1.22 m)

Base Door Opening Size

36" (914 mm) x 84" (2.13 m)

Finish

Custom

  • Includes Standard Push/Pull, MS Hookbolt Lock, and Two Keyed-Alike Cylinders
  • Accommodates 1/4" (6 mm) Tempered Glass With the Option for 1" (25 mm) Tempered Insulating Unit (Glass Not Included)
  • 6-1/2" (165 mm) Bottom Rail
  • Custom Fabricated to Accept Optional Hardware Applications
This Custom Medium Stile Entrance Door is built with 3-1/2" (89 mm) Stiles, 3-3/16" (81 mm) Top Rail, and 6-1/2" (165 mm) Bottom Rail. Standard features include stiles for Center Pivot hardware, glass stops for 1/4" (6 mm) tempered glass (by others), ready for custom fabrication for a wide range of optional hardware applications. Important Notes: Customer must install included protruding hardware (handles, pivots, etc.) that is boxed separately to prevent damage in transit. Door widths less than 36" (.9 m) may not pass A.D.A. Inspection.
