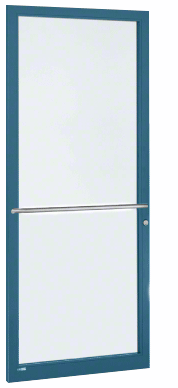

CRL-U.S. Aluminum DC21771 Custom KYNAR Paint Custom Single Series 250 Narrow Stile Center Pivot Entrance Door for Overhead Concealed Door Closer
Item #: DC21771 by US Aluminum
See reviews See
reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How
Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Custom Made to Your Size Specifications
- Includes Standard Push/Pull, Hanging Hardware, MS Hookbolt Lock, and Two Keyed-Alike Cylinders
- Accommodates 1/4" (6 mm) Tempered Glass with the Option for a 1" (25 mm) Tempered Insulating Unit (Glass Not Included)
- 9-1/2" (241 mm) Bottom Rail Available to Comply with A.D.A. and Title 21 Applications
- Custom Fabricated to Accept Optional Hardware Applications
Minimum Door Size
24" (610 mm) x 48" (1.22 m)
Base Door Opening Size
36" (914 mm) x 84" (2.13 m)
Maximum Door Size
48" (1.22 m) x 96" (2.44 m)
Finish
Custom

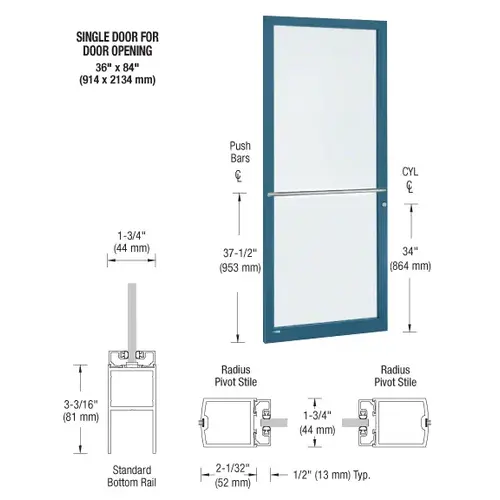

This Custom Narrow Stile Entrance Door is built with 2" (51 mm) Stiles, 2-1/8" (54 mm) Top Rail, and 3-3/16" (81 mm) Bottom Rail. Standard features include stiles for Center Pivot hardware, glass stops for 1/4" (6 mm) tempered glass (by others), ready for custom fabrication for a wide range of optional hardware applications. Important Notes: Customer must install included protruding hardware (handles, pivots, etc.) that is boxed separately to prevent damage in transit. Door widths less than 36" (.9 m) may not pass A.D.A. Inspection.
