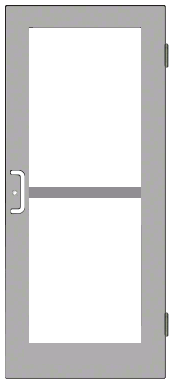

CRL-U.S. Aluminum DZ51511 Clear Anodized Custom Single Series 550 Wide Stile Butt Hinged Entrance Door For Panics and Surface Mount Door Closers

Item #: DZ51511 by US Aluminum

Item Discontinued!
See reviewsSee reviews
See reviews summary

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Includes Standard Panic Pull, Hanging Hardware
  • Selected Panic Hardware and One Cylinder Ordered and Added Separately
  • Accommodates 1/4" (6 mm) Tempered Glass with the Option for 1" (25 mm) Tempered Insulating Unit (Glass Not Included)
  • 9-1/2" (241 mm) Bottom Rail Available to Comply with A.D.A. and Title 21 Applications
  • Custom Fabricated to Accept Optional Hardware Applications

Finish

Clear

Base Door Opening Size

36" (914 mm) x 84" (2.13 m)

Maximum

48" (1.22 m) x 96" (2.44 m)

Minimum

24" (610 mm) x 48" (1.22 m)

Product Overview

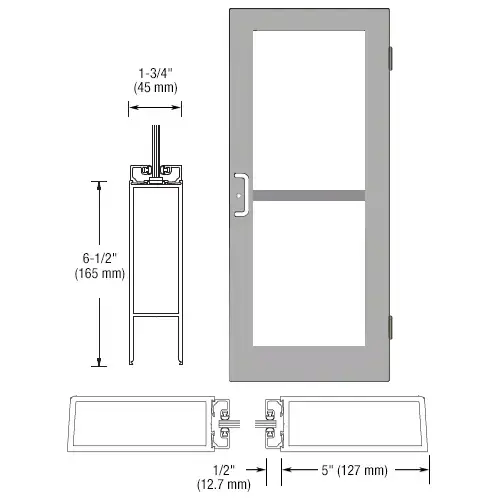

This Custom Wide Stile Entrance Door is built with 5" (127 mm) Stiles, 5-1/2" (140 mm) Top Rail, and 6-1/2" (165 mm) Bottom Rail. Standard features include stiles for Butt Hinge hardware, glass stops for 1/4" (6 mm) tempered glass (by others), ready for custom fabrication for a wide range of optional hardware applications. Important Notes: Customer must install included protruding hardware (handles, pivots, etc.) that is boxed separately to prevent damage in transit. Door widths less than 36" (914 mm) may not pass A.D.A. Inspection.
