Class I Bronze Black Anodized Series 925 Single Transom Patio Door Hinge Left Swing Out

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

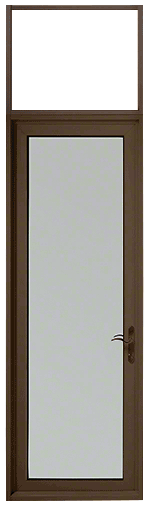

CRL-U.S. Aluminum PNL91522R0 Class I Bronze Black Anodized Series 925 Single Transom Patio Door Hinge Left Swing Out

Item #: PNL91522R0 by US Aluminum

Item Discontinued!
See reviewsSee reviews
See reviews summary

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • 1" x 4-1/2" (25 x 144 mm) Butt Hinge Frame
  • Accepts 1" (25 mm) Insulating Glass
  • Five-Point Locking Device
  • 1/2" Low Profile Threshold
  • For Out Swing Applications

Finish

Bronze Black Anodized

Product Overview

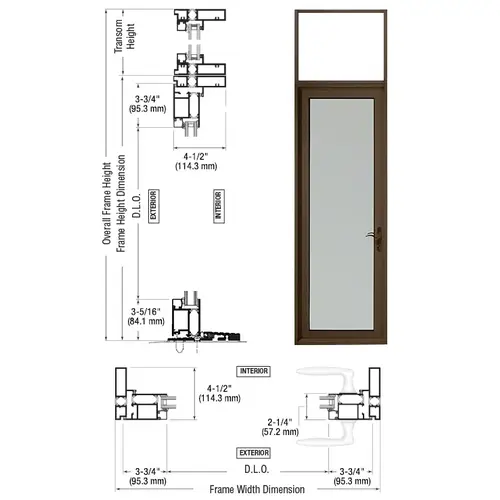

This CRL Series 925 Single Patio Entrance is built with 1" x 4-1/2" (25 x 114.3 mm) Transom Frame, 2-1/4" (57.2 mm) Thick Door, 3.75" (95 mm) Stiles, 3.75" (95 mm) Top Rail, 3" (76 mm) Bottom Rail, and Low Profile Threshold. Standard features include stiles for Butt Hinge hardware, glass stops for 1" (25 mm) tempered glass (by others), and Five-Point Locking Hardware.
