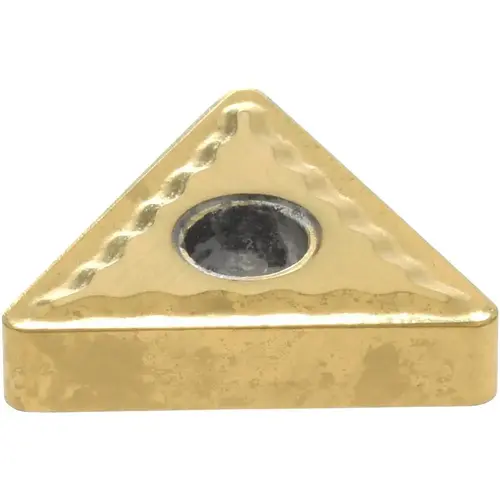

Turning Insert: TNMG322R ICP22, Solid Carbide Al2O3

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Value Collection 41000 Turning Insert: TNMG322R ICP22, Solid Carbide Al2O3

Item #: 41000 by Value Collection

See reviewsSee reviews
See reviews summary
In Stock

$12.01

/each
SAVE UP TO 1.20
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 176 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Included Angle

60

Insert Material

Carbide

Series

KENLOC

Side Clearance

Negative

Coating/Finish

Al2O3

Corner Radius (Decimal Inch)

0.0312

Material Grade

C2

Primary Workpiece Material Code

K

UNSPSC Code

23242105

Vendor Drop Ship

N

Insert Holding Method

Clamp

Insert Thickness (Decimal Inch)

0.1250

Insert Thickness (Inch)

1/8

Maximum Depth of Cut (Decimal Inch)

0.0492

Inscribed Circle (Decimal Inch)

0.3750

Corner Radius (Inch)

1/32

Insert Shape

T - Triangle

Clearance Code

N

Insert Shape Code

T

Chip Breaker

G

Insert Style

TNMG

Insert Size Code

322

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.1500

Relief Angle

0

Inscribed Circle (Inch)

3/8

Maximum Depth of Cut (mm)

1.25

Manufacturer Grade

ICP22

ISO Size Code

160308

ANSI Size Code

322

ISO Insert Code

TNMG160308

ANSI Insert Code

TNMG322

Product Overview
Turning Insert: TNMG322R ICP22, Solid Carbide Al2O3 Coated, 3/8" Inscribed Circle, 1/32" Corner Radius, 60 degree Triangle, Series KENLOC
