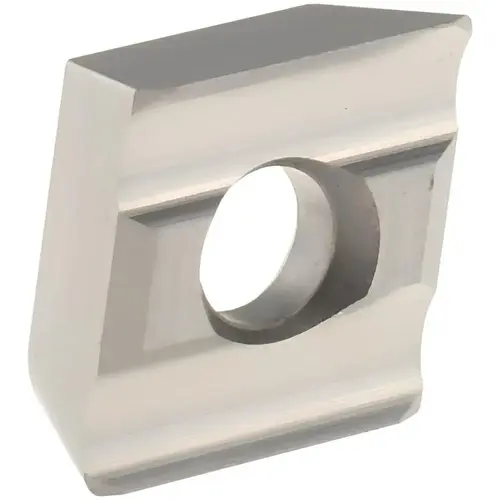

Milling Insert: C32GUX NK2020, Solid Carbide Bright/Uncoated

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Value Collection C32GUX/NK2020 S Milling Insert: C32GUX NK2020, Solid Carbide Bright/Uncoated

Item #: C32GUX/NK2020 S by Value Collection

See reviewsSee reviews
See reviews summary
In Stock

$38.46

/each
SAVE UP TO 3.85
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 4120 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Honed

Material Application

Non-Ferrous Metal

ANSI Code

C32GUX

Number of Cutting Edges

2

Insert Material

Solid Carbide

Series

C32GUX

Coating Process

Uncoated

Coating/Finish

Bright/Uncoated

Corner Radius (Decimal Inch)

0.0236

Length (Decimal Inch - 4 Decimals)

0.3750

Length (Inch)

3/8

Manufacturers Catalog Number

C32GUX

Material Grade

M20

Primary Workpiece Material

Non-Ferrous Metal

Primary Workpiece Material Code

N

Thickness (Decimal Inch - 4 Decimals)

0.1250

Thickness (Inch)

1/8

UNSPSC Code

23291601

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.3543

Coating Classification

Uncoated

Insert Holding Method

Screw

Multi-use Tool

Yes

Rake

Neutral

Insert Hand

Right Hand

Inscribed Circle (Decimal Inch)

0.3750

Insert Shape

Parallelogram

Chip Breaker

Common

Insert Style

C32

Insert Size Code

32

Hole Diameter (Decimal Inch)

0.1496

Relief Angle

0.00

Included Angle Degree

80

Inscribed Circle (Inch)

3/8

Manufacturer Grade

NK2020

Inscribed Circle Range (Decimal Inch)

0.3500 to 0.4000

Single or Double Sided Insert

Single

Length Range (Decimal Inch)

0.3200 to 0.4000

Thickness Range (Decimal Inch)

0.1250 to 0.1500

Iso Code

C32GUX

Product Overview
Milling Insert: C32GUX NK2020, Solid Carbide Bright/Uncoated Coated, 1/8" Thick, 0.1250 " Thick, 0.3543" Wide
