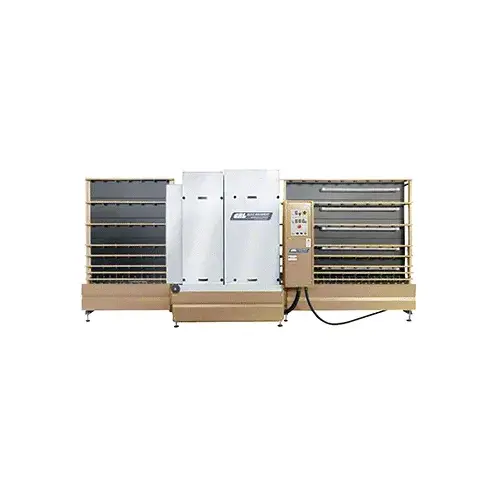

CRL VEW63 Open Top Vertical Glass Washer

Item #: VEW63 by CR Laurence

See reviews See reviews
The item is currently out of stock and it may or may not be restocked
OUT OF STOCK

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

  • Open Top Runs Glass Up to 126" (3.20 m) Wide in Two Passes
  • Packed with All the Standard Features Needed for IG Manufacturing
  • Standard Recirculating Detergent and Miser Rinse
  • Standard Final Rinse Solenoid Water Saver
  • Easy to Set Up and Maintain
  • Easy-to-Use Operator Control Station
  • Lighted Inspection Station on Outgoing Conveyor
  • Open Top Runs Glass Up to 126" (3.60 m) Wide in Two Passes
  • Available for Purchase or Lease

Height

96" (2.44 m)

Length

96" (2.44 m)

Footprint

196" x 60" (5.00 x 1.52 m)

Conveyor Height

21.6" (550 mm)

The CRL 63" Open Top Vertical Glass Washer can wash glass to 63" (1.60 m) wide in one pass, and up to 126" (3.20 m) wide in two passes. The machine will operate from 3.28' to 22.9' per minute (1.0 x 7 mpm), and has a load capacity of 300 lbs. (136 kg). You can wash glass from single strength to 1/2" (12 mm) thick, and from a minimum size of 4" x 10" (102 x 305 mm). Frame components in contact with the washing areas are made of stainless steel. Power conveyors, blower sound enclosure, recirculated heated detergent, recirculated miser rinse, and a fresh water electric solenoid valve are standard. Also included are glass inspection lights on the exit conveyor. The four brushes are Low-e compatible. Set-up and maintenance is easy, and can be completed without a factory service technician.
Controls: All controls are built to OSHA requirements, CE and National Electric Code. Wiring is for Three Phase, 60 Cycle, 230V AC power.
Utilities:
Electrical - 5 Motors, Total 12.3 HP (9.2 kw*) *Includes Blower.
Voltage - Three Phase, 60 Cycle, 230V AC
Power - 40 AMP @ 230V AC
Converter available to operate the VEW63 Washer at Single Phase, 60 Cycle, 220V AC.
SPECIFICATIONS:
Height: 96" (2.44 m)
Footprint: 196" x 60" (5.00 x 1.52 m)
Roller Conveyor Height: 21.6" (550 mm)
