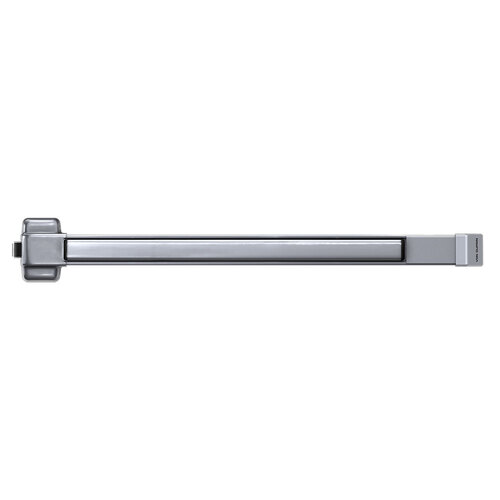

Von Duprin 22EO-F 3 526 Rim Exit Devices Chrome Powdercoat

Item #: 22EO-F 3 526 by Von Duprin

See reviews

$732.50 /each

SAVE UP TO 73.25

Buying in bulk

Roll over image to zoom in

Von Duprin 22EO-F 3 526 Rim Exit Devices Chrome Powdercoat

Item #: 22EO-F 3 526 by Von Duprin

See reviews See reviews

$732.50 /each

SAVE UP TO 73.25

Buying in bulk

Special Order*

Usually ships in 1-2 weeks

QTY
+
+ Add to Wishlist

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

  • Device functions: Ships ready for all functions, EO, DT, NL, TP, K, L
  • Device lengths: 3' (914 mm), 4' (1219 mm)
  • Device centerline from finished floor: 39 13/16" (1011 mm) 39 11/16" (1008 mm) with mullion
  • Center case dimensions: 4 1/4" (108 mm) x 1 3/8" (41 mm) x 2 3/8" (60 mm)
  • Mechanism case dimensions: 2" (51 mm) x 3 3/4" (95 mm)
  • Projection push bar: Push bar neutral - 3 3/4" (95 mm) push bar depressed - 3" (76 mm)
  • Latch bolt: Deadlocking, 3 /4" (19 mm) throw
  • Fasteners & sex bolts (SNB): Includes 1 3/4" (44 mm) and 2 1/4" (57 mm) wood & metal doors optional SNB available for device
  • Electric options: LX latchbolt monitor switch RX pushpad monitor switch RX2 double pushpad monitor switch ALK alarm exit kit CON Allegion Connect
  • Mechanical options: GBK glass bead kit AX accessible device
  • Dogging feature: Hex key dogging standard
  • Dogging options: LD less dogging
  • Strikes: 299 – Dull black

Color

Chrome Powdercoat

Color Code

526

Fire Rated

Yes {Variable}

Origin

USA

BAA Qualified

Yes

Package Height

10.5

Package Length

36.75

Package Volume

1929.375

Package Width

5

Grade 1 Rim Exit Bar, 36" Fire-Rated Device, Exit Only, Less Dogging, Chrome Powdercoat Finish, Field Reversible

22 Rim exit device for all types of single and double doors with mullion. Covers stock hollow metal doors with 161* cutouts. Fits door stiles as narrow as 3 13/16" (97 mm). The device is non-handed.

Rim exit device for all types of single and double doors with mullion.

Grade 1 Rim exit device for all types of single and double doors with mullion, UL listed for Panic Exit Hardware.
