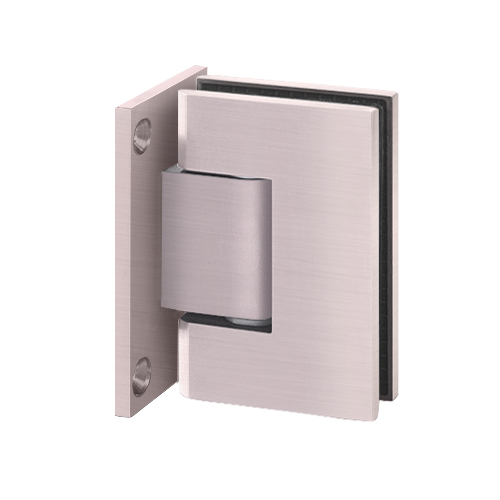

Brixwell HGTWFPBP Designer Series Shower Door Wall Mount Hinge With Full Back Plate Brushed Pewter
Item #: HGTWFPBP by Brixwell
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Finished to Match Stainless Steel Allen Style Clamp Screws (Phillips Screws Available Upon Request)
- The polish not only adds aesthetics to the application but also ensures it is dust and scratch-resistant
- The high-quality metal used in making this hinge guarantees protection against getting rusted in the moist atmosphere hence durable for everyday use
- Self-Centering 0° Return with reversible 5° Pin (Preset 5° and 45° Pins Also Available)
- Solid Forged Brass Construction
- Highly functional hardware comes at an affordable price
- Precision Machined 300 Series Stainless Steel Components
- Dual Precision Wound Stainless Steel Return Springs
- Self-Closing from 25 Degrees
- Mouse Ear Design
- Designed for 3/8" and 1/2" Glass
- Wall Mount Hinges Include Finished to Match Stainless Steel Mounting Screws
- Alan Wrench Included
- Rated at 40lbs Per Hinge
Finish
Brushed Pewter
Material
Solid Forged Brass
Type
With Full Back Plate
Mounting Style
Wall mount
Closing Type
Self-Centering 0° Return with reversible 5° Pin (Preset 5° and 45° Pins Also Available)
Pack Size
1
Designed For
3/8" and 1/2" Glass
Self-Closing
From 25 Degrees
Other Specifications
Maximum door weight: - 2-hinge - 80 lbs (36 kg) - 3-hinge - 120 lbs (54 kg) Maximum door width: - 2-hinge - 30" (762 mm) - 3-hinge - 36" (914 mm)
Hardware Includes
Matching Finish Stainless Steel Mounting Screws and Allen Wrench
Plate Type
Full Back Plate
Back Plate
Full
Glass Fabrication Required
Cutout
Edge Profile
Square
Adjustable
No
Self-Centering
Yes
5 Degree Pre-Set
No
Max Door Width - 3 Hinges (IN)
36
Max Door Weight-2 Hinges (Lbs)
80
Glazing Thickness (Inches)
1/2, 3/8
Max Door Width - 2 Hinges (IN)
30
Max Door Weight-3 Hinges (Lbs)
120
