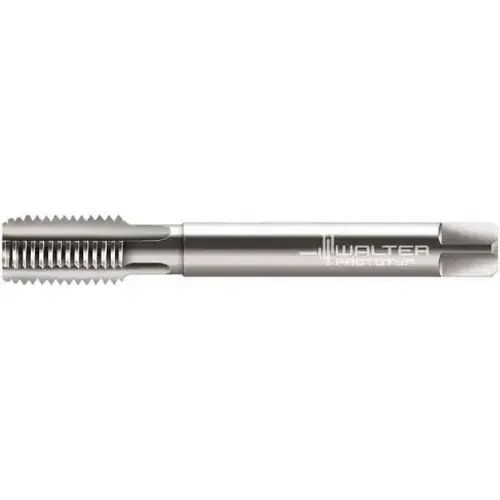

Walter-Prototyp 5077564 Straight Flute Tap: M8x1 Metric Fine, 3 Flute, Modified Bottoming Chamfer, 6H Class of Fit, Cobalt, Bright/Uncoated Finish

Item #: 5077564 by Walter-Prototyp

See reviewsSee reviews
See reviews summary

$116.80

/each
SAVE UP TO 11.68
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Material

Cobalt

Application

Blind Hole Threading

Material Application

Aluminum

Overall Length (mm)

90.00

Number of Flutes

3

Tap Type

Machine

Thread Direction

Left Hand

Series

21368

Thread Length (mm)

18.00

Thread Size (mm)

M8x1

Thread Standard

Metric Fine

Chamfer

Modified Bottoming

Class Of Fit

6H

Coating/Finish

Bright/Uncoated

Coolant Through

No

Material Grade

M35

Overall Length (Decimal Inch)

3.5433

Oversize

No

Shank Diameter (Decimal Inch)

0.2362

Shank Diameter (mm)

6.00

Square Size (Decimal Inch)

0.1929

Square Size (mm)

4.90

Tapping Depth (mm)

67.00

Thread Length (Decimal Inch)

0.7087

UNSPSC Code

23241600

Vendor Drop Ship

N

Square Length (Decimal Inch)

0.3150

Square Length (mm)

8.00

Tapping Depth (Decimal Inch)

2.6380

Thread Pitch (mm)

1.00

Product Overview
Straight Flute Tap: M8x1 Metric Fine, 3 Flute, Modified Bottoming Chamfer, 6H Class of Fit, Cobalt, Bright/Uncoated Finish 18.00 mm Thread Length, 90.00 mm OAL, Left Hand, Series 21368
