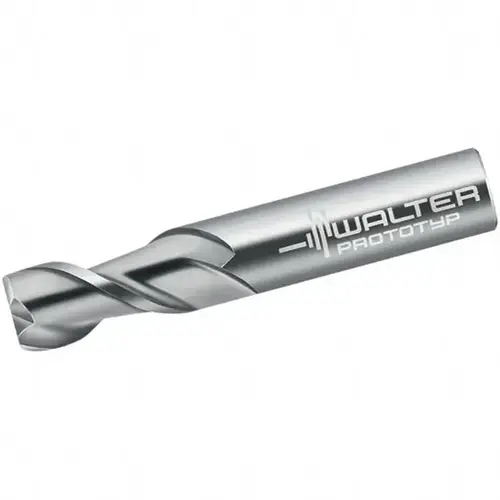

Walter-Prototyp 5543442 Square End Mill: 1/16 inch Dia, 3/16 inch LOC, 1/4 inch Shank Dia, 2 Flutes, Solid Carbide

Item #: 5543442 by Walter-Prototyp

See reviewsSee reviews
See reviews summary
In Stock

$99.50

/each
SAVE UP TO 9.95
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 6 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Shank Type

Straight-Cylindrical

Shank Diameter (Inch)

1/4

Variable Helix

No

Vendor Drop Ship

N

Mill Diameter (Inch)

1/16

Overall Length Tolerance

+2.00 mm

Material Grade

A1007

Helix Angle

45

Length of Cut (Decimal Inch)

0.1880

Overall Length (mm)

63.50

Number of Flutes

2

PSC Code

3455

Length of Cut (Inch)

3/16

Chipbreaker

No

Mill Diameter (Decimal Inch)

0.0625

Flute Type

Spiral

Shank Diameter (mm)

6.35

Length Type

Regular

Extended Reach

No

Reach Length (mm)

4.76

Mill Diameter Tolerance

h10

End Mill Material

Solid Carbide

TIR Maximum (mm)

0.01

Flute Direction

Right Hand

Centercutting

Yes

Cutting Direction

Right Hand

Reach Length (Decimal Inch)

0.1870

Shank Diameter (Decimal Inch)

0.2500

Shank Diameter Tolerance

h6

Series

AH602511

Variable Index

No

Length Of Cut Range (Decimal Inch)

0.1000 - 0.2000

Length of Cut (mm)

4.78

Product Overview
Square End Mill: 1/16 inch Dia, 3/16 inch LOC, 1/4 inch Shank Dia, 2 Flutes, Solid Carbide Single End, Uncoated, Spiral Flute, Mfr Grade A1007, Centercutting, RH Cut, RH Flute, Series AH602511
