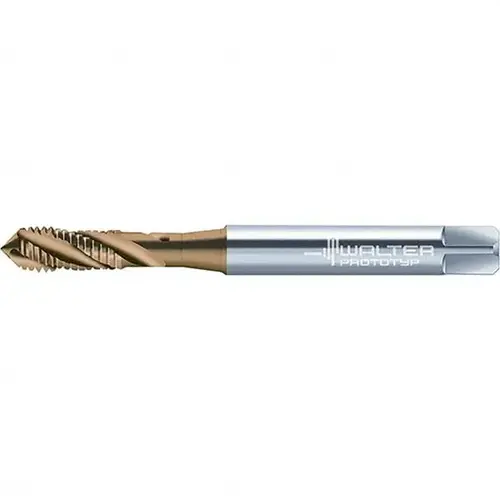

Walter-Prototyp 6149757 Spiral Flute Tap: M3x0.5, Metric, 3 Flute, Modified Bottoming, 6HX Class of Fit, Cobalt, TiN Finish
Item #: 6149757 by Walter-Prototyp
See reviewsSee reviews
HURRY! Low in stock
$91.03
/eachSAVE UP TO 9.10
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 2 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Material
Cobalt
Application
Blind Hole Threading
Flute Style
Fast
Material Application
Cast Steel
Overall Length (mm)
56.00
Helix Angle
40
Number of Flutes
3
Thread Direction
Right Hand
Series
M2051305
Thread Length (mm)
6.00
Thread Size (mm)
M3x0.5
Thread Standard
Metric
Chamfer
Modified Bottoming
Class Of Fit
6HX
Coating/Finish
TiN
Coolant Through
No
Material Grade
M35
Overall Length (Decimal Inch)
2.2047
Oversize
No
Primary Workpiece Material
Steel
Primary Workpiece Material Code
P
Shank Diameter (Decimal Inch)
0.1378
Shank Diameter (mm)
3.50
Square Size (Decimal Inch)
0.1060
Square Size (mm)
2.70
Tapping Depth (mm)
18.00
Thread Length (Decimal Inch)
0.2362
UNSPSC Code
23241600
Vendor Drop Ship
N
Flute Direction
Right Hand
Neck Length (Decimal Inch)
0.4724
Proprietary Coating/Finish
TiN
Square Length (Decimal Inch)
0.2360
Square Length (mm)
6.00
Tapping Depth (Decimal Inch)
0.7087
Thread Pitch (mm)
0.50
Product Overview
Spiral Flute Tap: M3x0.5, Metric, 3 Flute, Modified Bottoming, 6HX Class of Fit, Cobalt, TiN Finish 6.00 mm Thread Length, 56.00 mm OAL, Right Hand Flute, Right Hand Thread, Series M2051305
