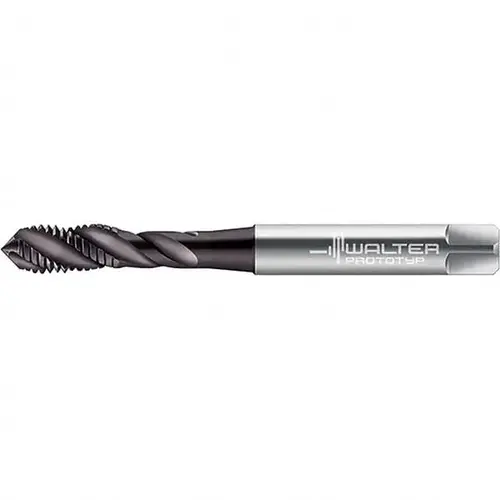

Spiral Flute Tap: M4x0.70, Metric, 3 Flute, Modified Bottoming, 6HX Class of Fit, Powdered Metal, TiN Finish Proprietary

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Walter-Prototyp 6245535 Spiral Flute Tap: M4x0.70, Metric, 3 Flute, Modified Bottoming, 6HX Class of Fit, Powdered Metal, TiN Finish Proprietary

Item #: 6245535 by Walter-Prototyp

See reviewsSee reviews
See reviews summary
In Stock

$102.89

/each
SAVE UP TO 10.29

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 10 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Material

Powdered Metal

Application

Blind Hole Threading

Flute Style

Fast

Material Application

Aluminum

Overall Length (mm)

63.00

Helix Angle

45

Number of Flutes

3

Thread Direction

Right Hand

Series

EP2051302

Thread Length (mm)

7.00

Thread Size (mm)

M4x0.70

Thread Standard

Metric

Chamfer

Modified Bottoming

Class Of Fit

6HX

Coating/Finish

Proprietary

Coolant Through

No

Overall Length (Decimal Inch)

2.4803

Oversize

No

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

Shank Diameter (Decimal Inch)

0.1772

Shank Diameter (mm)

4.50

Square Size (Decimal Inch)

0.1340

Square Size (mm)

3.40

Tapping Depth (mm)

14.80

Thread Length (Decimal Inch)

0.2756

UNSPSC Code

23241600

Vendor Drop Ship

N

Flute Direction

Right Hand

Neck Length (Decimal Inch)

0.3071

Proprietary Coating/Finish

THL

Square Length (Decimal Inch)

0.2360

Square Length (mm)

6.00

Tapping Depth (Decimal Inch)

0.5827

Thread Pitch (mm)

0.70

Product Overview
Spiral Flute Tap: M4x0.70, Metric, 3 Flute, Modified Bottoming, 6HX Class of Fit, Powdered Metal, TiN Finish 7.00 mm Thread Length, 63.00 mm OAL, Right Hand Flute, Right Hand Thread, Series EP2051302
