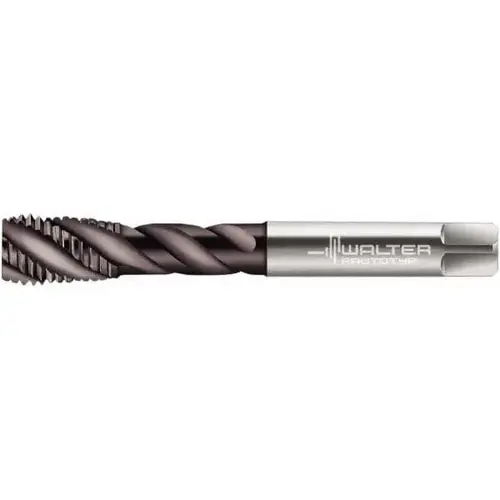

Walter-Prototyp 6245652 Spiral Flute Tap: M20x1.5, Metric Fine, 4 Flute, Modified Bottoming, 6HX Class of Fit, Powdered Metal, Hardlube Finish Proprietary

Item #: 6245652 by Walter-Prototyp

See reviewsSee reviews
See reviews summary

$414.77

/each
SAVE UP TO 41.48
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Material

Powdered Metal

Application

Blind Hole Threading

Flute Style

Fast

Material Application

Aluminum

Overall Length (mm)

125.00

Helix Angle

45

Number of Flutes

4

Thread Direction

Right Hand

Series

EP2156302

Thread Length (mm)

17.00

Thread Size (mm)

M20x1.5

Thread Standard

Metric Fine

Chamfer

Modified Bottoming

Class Of Fit

6HX

Coating/Finish

Proprietary

Coolant Through

No

Overall Length (Decimal Inch)

4.9213

Oversize

No

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

Shank Diameter (Decimal Inch)

0.6299

Shank Diameter (mm)

16.00

Square Size (Decimal Inch)

0.4720

Square Size (mm)

12.00

Tapping Depth (mm)

62.50

Thread Length (Decimal Inch)

0.6693

UNSPSC Code

23241600

Vendor Drop Ship

N

Flute Direction

Right Hand

Neck Length (Decimal Inch)

1.7913

Proprietary Coating/Finish

THL

Square Length (Decimal Inch)

0.5910

Square Length (mm)

15.00

Tapping Depth (Decimal Inch)

2.4606

Thread Pitch (mm)

1.50

Product Overview
Spiral Flute Tap: M20x1.5, Metric Fine, 4 Flute, Modified Bottoming, 6HX Class of Fit, Powdered Metal, Hardlube Finish 17.00 mm Thread Length, 125.00 mm OAL, Right Hand Flute, Right Hand Thread, Series EP2156302
