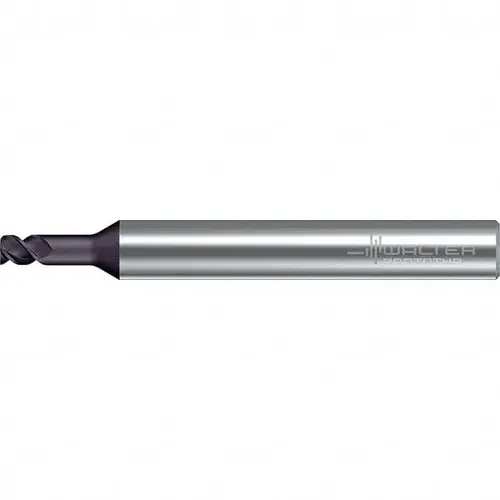

Walter-Prototyp 6579340 Corner Radius End Mill Head: 3 Flutes TiAlN
Item #: 6579340 by Walter-Prototyp
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
For Use With
Toolholders
Flute Type
Spiral
Material Application
Steel
Shank Type
Straight-Cylindrical
End Type
Corner Radius
Overall Length (mm)
50.00mm
Number of Flutes
3
Pitch
Normal
Chipbreaker
No
Length Type
Extended
Cutting Direction
Right Hand
Series
MC726
Variable Helix
No
Coating/Finish
TiAlN
Coolant Through
No
Corner Radius (Decimal Inch)
0.0030
Length Of Cut (Decimal Inch - 4 Decimals)
1.5000
Manufacturers Catalog Number
MC726-03.0A3A008J
Material Grade
WK40TF
Primary Workpiece Material
Steel
Primary Workpiece Material Code
P
Shank Diameter (mm)
6.00mm
UNSPSC Code
27112803
Vendor Drop Ship
N
Centercutting
Yes
Coating Classification
PVD
End Mill Material
Solid Carbide
Extended Reach
Yes
Flute Direction
Right Hand
Helix Style
High
Material Removal Type
Roughing & Finishing
Mill Diameter (Decimal Inch)
0.1180
Secondary Workpiece Material
Stainless Steel
Single Or Double End
Single
Variable Index
No
Length of Cut (mm)
3.00mm
Reach Length (mm)
14.00
Secondary Workpiece Material Code
M
Mill Diameter Tolerance
e8
Mill Diameter (mm)
3.00mm
Neck Diameter (mm)
3.00
Shank Diameter Tolerance
h5
Corner Radius (mm)
0.80
Proprietary Coating Designation
WK40TF
Product Overview
Corner Radius End Mill Head: 3 Flutes Solid Carbide, TiAlN Coated, Series MC726-A-A-R-J
