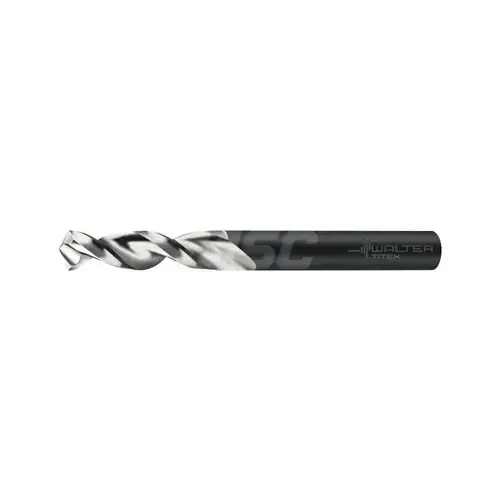

Walter-Titex 5057105 Screw Machine Length Drill Bit: 0.204" Dia, 130 degree, Cobalt;Vanadium High Speed Steel Bright/Uncoated

Item #: 5057105 by Water-Tite

See reviewsSee reviews
See reviews summary

$14.08

/each
SAVE UP TO 1.41
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Flute Type

Parabolic

Shank Type

Straight-Cylindrical

Number of Flutes

2

Standards

DIN

Tool Material

Cobalt

Cutting Direction

Right Hand

Series

A1148

Point Type

Split

Drill Length Type

Screw Machine

Coating/Finish

Bright/Uncoated

Coolant Through

No

Drill Bit Grade

High Performance

Drill Bit Size (Decimal Inch)

0.2040

Drill Bit Size (Wire)

#6

Drill Bit Size Range (Decimal Inch)

0.2000 to 0.2500

Flute By Diameter Ratio

3xD

Flute Length (Inch)

1-1/32

Maximum Drilling Depth (Decimal Inch)

0.7000

Overall Length (Inch)

2-7/16

Primary Workpiece Material

Cast Iron

Tool Performance

Universal

Vendor Drop Ship

N

Drill Bit Diameter Tolerance

-0.00071 to 0.00000 in

Drill Point Angle

130

Maximum Drilling Depth (mm)

18.00

Specification Designation

BS

Web Configuration

Tapered

Web Thinning

Web-Thinned

Drill Point Length (mm)

1.21

Drill Point Length (Decimal Inch)

0.0475

Product Overview
Screw Machine Length Drill Bit: 0.204" Dia, 130 degree, Cobalt;Vanadium High Speed Steel Bright/Uncoated, Right Hand Cut, Parabolic Flute, Straight-Cylindrical Shank, Series A1148
